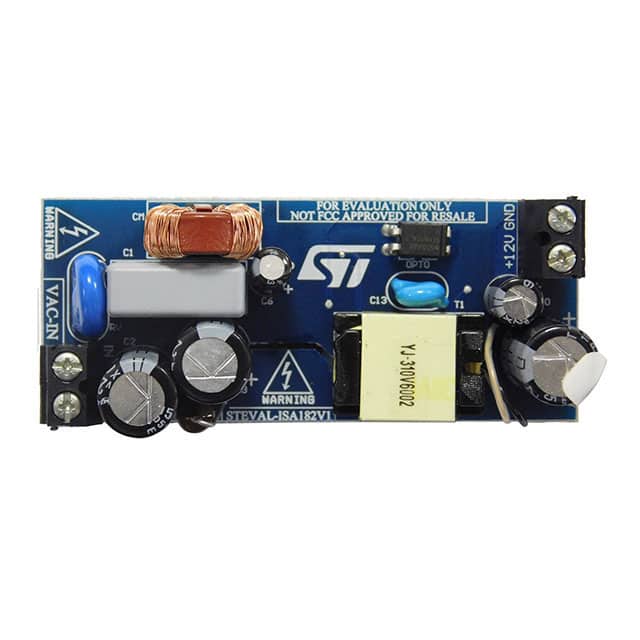

STEVAL-ISA182V1
STEVAL-ISA182V1
- Available: 1
- Manufacturer: STMicroelectronics
- Part Number: STEVAL-ISA182V1
- Detailed Description: VIPer38 VIPer™ plus AC/DC, Primary Side 1, Isolated Outputs Evaluation Board
- Category: Development Boards, Kits, Programmers | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$55.5000
10+
$52.1700
100+
$49.3950
1000+
$46.6200
10000+
$43.8450
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | STMicroelectronics |
|---|---|
| Series | VIPer™ plus |
| Package | - |
| Standard Package | 1 |
| Product Status | Active |
| Main Purpose | AC/DC | Primary Side |
| Outputs and Type | 1 | Isolated |
| Power - Output | 8.4 W |
| Voltage - Output | 12V |
| Current - Output | 700mA |
| Voltage - Input | 85 ~ 132 VAC |
| Regulator Topology | Flyback |
| Frequency - Switching | 115kHz |
| Board Type | Fully Populated |
| Supplied Contents | Board(s) |
| Utilized IC / Part | VIPer38 |
| Base Product Number | STEVAL |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8473.30.1180 |
