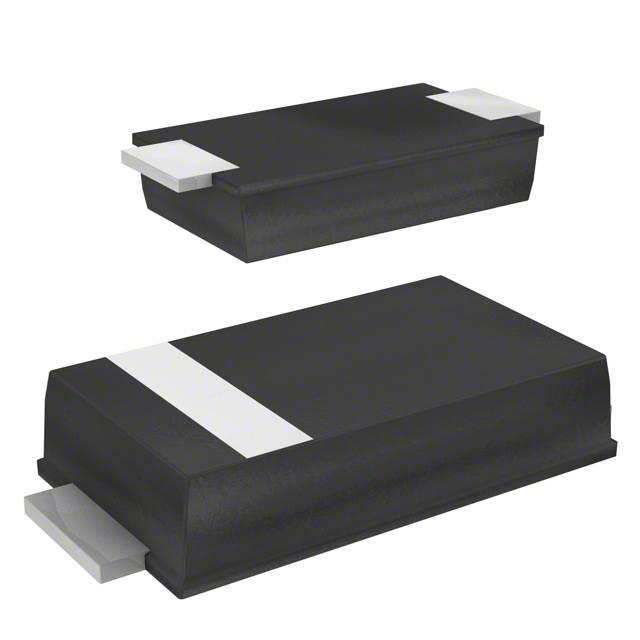

STPS2H100AF
STPS2H100AF
- Available: 4877
- Manufacturer: STMicroelectronics
- Part Number: STPS2H100AF
- Detailed Description: Diode 100 V 2A Surface Mount SMAflat
- Category: Discrete Semiconductor Products | Diodes - Rectifiers - Single
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.4920
10+
$0.4625
100+
$0.4379
1000+
$0.4133
10000+
$0.3887
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | STMicroelectronics |
|---|---|
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 10000 |
| Product Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 2A |
| Voltage - Forward (Vf) (Max) @ If | 790 mV @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 1 µA @ 100 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads |
| Supplier Device Package | SMAflat |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Base Product Number | STPS2H100 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
