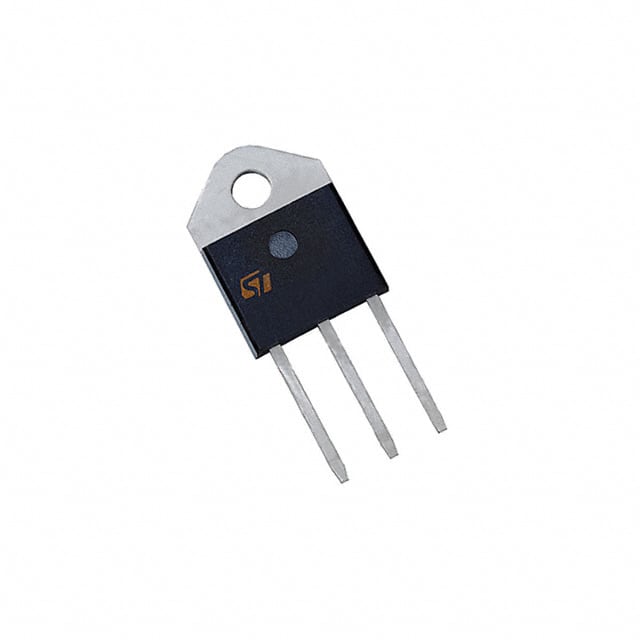

STPS3045CPIRG
STPS3045CPIRG
- Available: 0
- Manufacturer: STMicroelectronics
- Part Number: STPS3045CPIRG
- Detailed Description: Diode Array 1 Pair Common Cathode Schottky 45 V 15A Through Hole TOP-3 Insulated
- Category: Discrete Semiconductor Products | Diodes - Rectifiers - Arrays
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | STMicroelectronics |
|---|---|
| Series | - |
| Package | - |
| Standard Package | 30 |
| Product Status | Obsolete |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Voltage - Forward (Vf) (Max) @ If | 570 mV @ 15 A |
| Speed | Fast Recovery =< 500ns | > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 200 µA @ 45 V |
| Operating Temperature - Junction | 200°C (Max) |
| Mounting Type | Through Hole |
| Package / Case | TOP-3 Insulated |
| Supplier Device Package | TOP-3I |
| Base Product Number | STPS3045 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
