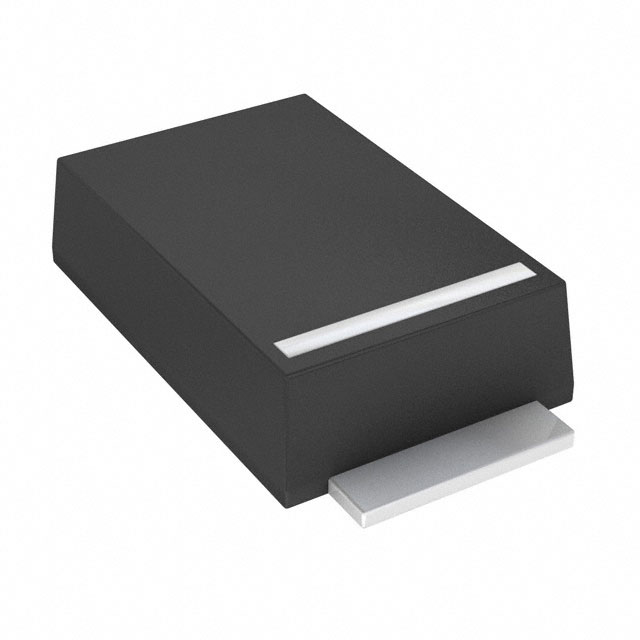

STPS5H100AFY
STPS5H100AFY
- Available: 9000
- Manufacturer: STMicroelectronics
- Part Number: STPS5H100AFY
- Detailed Description: Diode Schottky 100 V 5A Surface Mount SOD128Flat
- Category: Discrete Semiconductor Products | Diodes - Rectifiers - Single
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.8280
10+
$0.7783
100+
$0.7369
1000+
$0.6955
10000+
$0.6541
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | STMicroelectronics |
|---|---|
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 3000 |
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 5A |
| Voltage - Forward (Vf) (Max) @ If | 760 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 3.5 µA @ 100 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | SOD-128 |
| Supplier Device Package | SOD128Flat |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Base Product Number | STPS5 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
