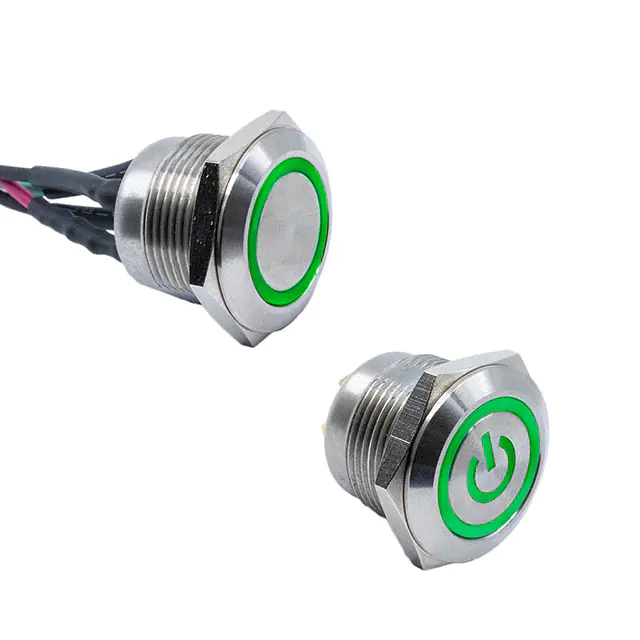

SV4F23SS-6G1
SV4F23SS-6G1
- Available: 0
- Manufacturer: E-Switch
- Part Number: SV4F23SS-6G1
- Detailed Description: Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front
- Category: Switches | Pushbutton Switches
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$19.2720
10+
$18.1157
100+
$17.1521
1000+
$16.1885
10000+
$15.2249
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | E-Switch |
|---|---|
| Series | SV4 |
| Package | Bulk |
| Standard Package | 40 |
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Anti-Vandal, Illuminated |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 2A (DC) |
| Voltage Rating - DC | 36 V |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | Power Symbol |
| Color - Actuator/Cap | Silver |
| Illumination Type, Color | LED, Green/Red |
| Illumination Voltage (Nominal) | 2.0, 3.1 VDC |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Panel Cutout Dimensions | Circular - 19.00mm Dia |
| Operating Temperature | -20°C ~ 70°C |
| Mechanical Life | - |
| Electrical Life | 200,000 Cycles |
| Base Product Number | SV4F23 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.50.9031 |
