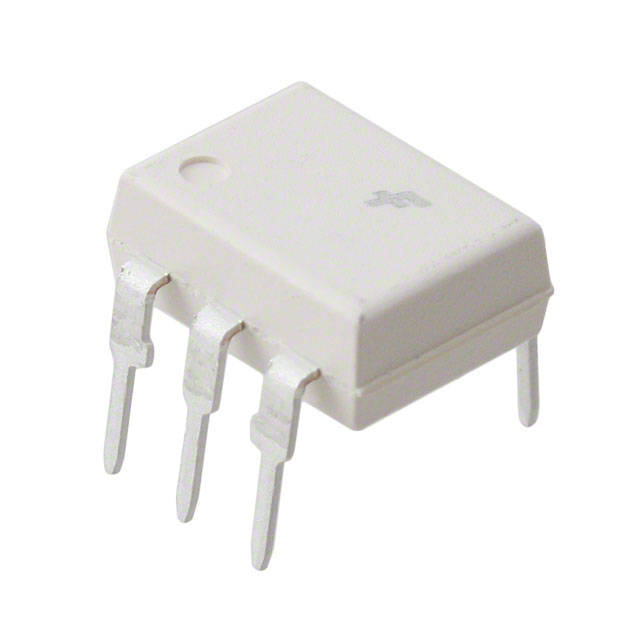

TIL117M
TIL117M
- Available: 10000
- Manufacturer: onsemi
- Part Number: TIL117M
- Detailed Description: Optoisolator Transistor with Base Output 7500Vpk 1 Channel 6-DIP
- Category: Isolators | Optoisolators - Transistor, Photovoltaic Output
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.7920
10+
$0.7445
100+
$0.7049
1000+
$0.6653
10000+
$0.6257
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| Series | - |
| Package | Tube |
| Standard Package | 50 |
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 7500Vpk |
| Current Transfer Ratio (Min) | 50% @ 10mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 10µs | 10µs (Max) |
| Rise / Fall Time (Typ) | 2µs | 2µs |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 30V |
| Current - Output / Channel | - |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300" | 7.62mm) |
| Supplier Device Package | 6-DIP |
| Base Product Number | TIL117 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
