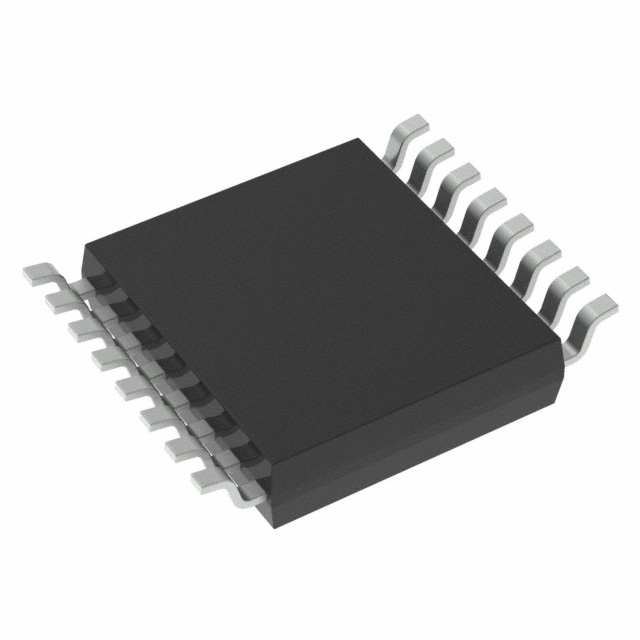

TMUX7208PWR
TMUX7208PWR
- Available: 3000
- Manufacturer: Texas Instruments
- Part Number: TMUX7208PWR
- Detailed Description: 1 Circuit IC Switch 8:1 5.4Ohm 16-TSSOP
- Category: Integrated Circuits (ICs) | Interface - Analog Switches, Multiplexers, Demultiplexers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$8.0400
10+
$7.5576
100+
$7.1556
1000+
$6.7536
10000+
$6.3516
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 2000 |
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 5.4Ohm |
| Channel-to-Channel Matching (ΔRon) | 700mOhm |
| Voltage - Supply, Single (V+) | 4.5V ~ 44V, ±4.5V ~ 22V |
| Voltage - Supply, Dual (V±) | 4.5V ~ 44V, ±4.5V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 205ns, 270ns |
| -3db Bandwidth | 30MHz |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 14pF, 130pF |
| Current - Leakage (IS(off)) (Max) | 70nA |
| Crosstalk | -65dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173, 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | TMUX7208 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
