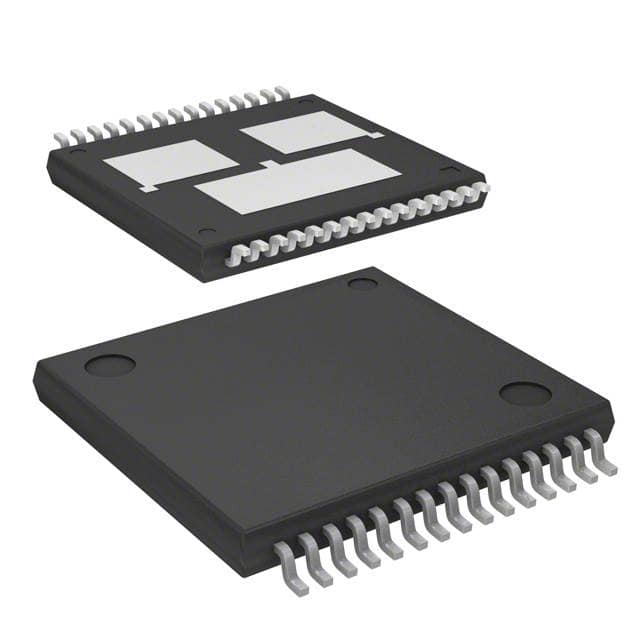

VNH2SP30-E
VNH2SP30-E
- Available: 0
- Manufacturer: STMicroelectronics
- Part Number: VNH2SP30-E
- Detailed Description: Motor Driver Power MOSFET PWM MultiPowerSO-30
- Category: Integrated Circuits (ICs) | PMIC - Motor Drivers, Controllers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | STMicroelectronics |
|---|---|
| Series | STripFET™, VIPower™ |
| Package | - |
| Standard Package | 29 |
| Product Status | Obsolete |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated | Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | PWM |
| Technology | Power MOSFET |
| Step Resolution | - |
| Applications | Automotive |
| Current - Output | 30A |
| Voltage - Supply | 5.5V ~ 16V |
| Voltage - Load | 5.5V ~ 16V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 30-MPSO | MultiPowerSO |
| Supplier Device Package | MultiPowerSO-30 |
| Base Product Number | VNH2SP |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
