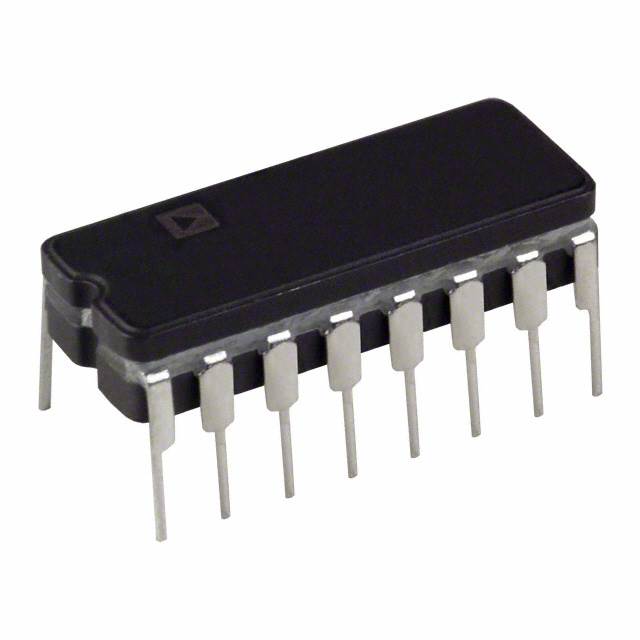

ADG509ATQ

ADG509ATQ

ADG509ATQ

  • Available: 75
  • Manufacturer: Analog Devices Inc.
  • Part Number: ADG509ATQ
  • Detailed Description: 2 Circuit IC Switch 4:1 450Ohm 16-CERDIP
  • Category: Integrated Circuits (ICs) | Interface - Analog Switches, Multiplexers, Demultiplexers
  • RoHS Status: ROHS3 Compliant
  • Datasheet: Datasheet
Reference Price (USD)
1+
$43.1880
10+
$40.5967
100+
$38.4373
1000+
$36.2779
10000+
$34.1185

Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.

Product Specifications

Manufacturer Analog Devices Inc.
Series -
Package Tube
Standard Package 25
Product Status Active
Switch Circuit SP4T
Multiplexer/Demultiplexer Circuit 4:1
Number of Circuits 2
On-State Resistance (Max) 450Ohm
Channel-to-Channel Matching (ΔRon) 22.5Ohm
Voltage - Supply, Single (V+) 10.8V ~ 16.5V
Voltage - Supply, Dual (V±) ±10.8V ~ 16.5V
Switch Time (Ton, Toff) (Max) 300ns | 300ns
-3db Bandwidth -
Charge Injection 4pC
Channel Capacitance (CS(off), CD(off)) 5pF | 11pF
Current - Leakage (IS(off)) (Max) 1nA
Crosstalk -
Operating Temperature -55°C ~ 125°C (TA)
Mounting Type Through Hole
Package / Case 16-CDIP (0.300" | 7.62mm)
Supplier Device Package 16-CERDIP
Base Product Number ADG509

Environmental & Export

RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
