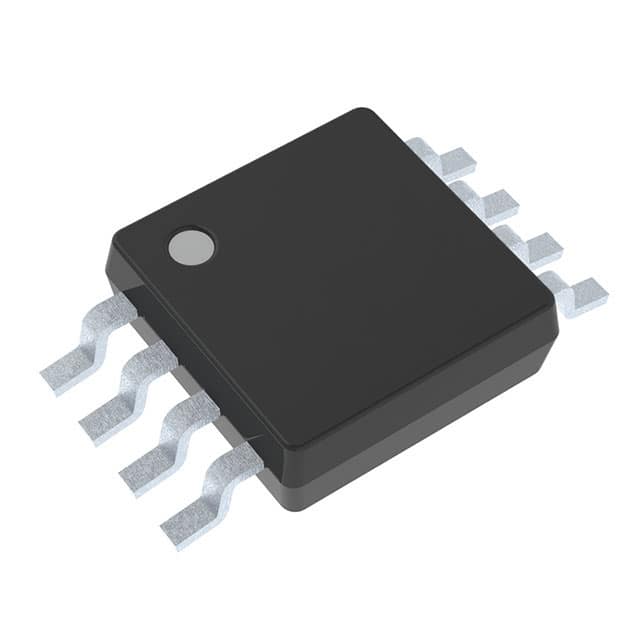

SN74LVC2G38DCUT
SN74LVC2G38DCUT
- Available: 750
- Manufacturer: Texas Instruments
- Part Number: SN74LVC2G38DCUT
- Detailed Description: NAND Gate IC 2 Channel Open Drain 8-VSSOP
- Category: Integrated Circuits (ICs) | Logic - Gates and Inverters
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.5840
10+
$1.4890
100+
$1.4098
1000+
$1.3306
10000+
$1.2514
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| Series | 74LVC |
| Package | - |
| Standard Package | 250 |
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | Open Drain |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | - | 32mA |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Input Logic Level - High | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 3.9ns @ 5V | 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-VSSOP |
| Package / Case | 8-VFSOP (0.091" | 2.30mm Width) |
| Base Product Number | 74LVC2G38 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
