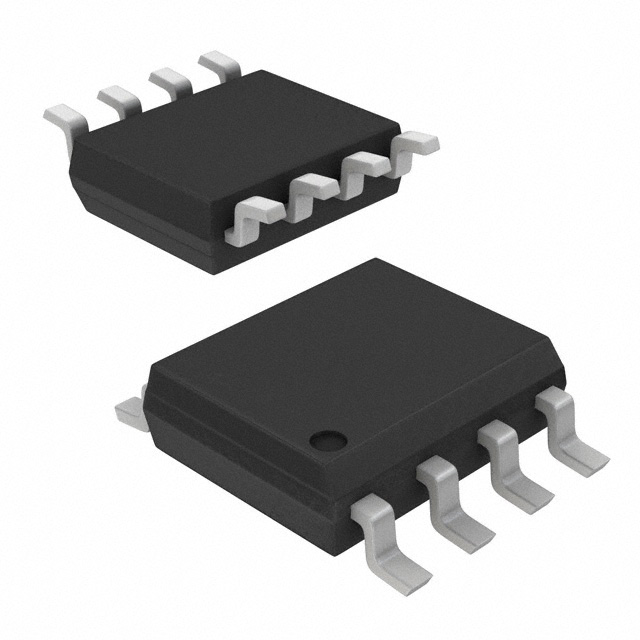

ZXMN6A09DN8TA

ZXMN6A09DN8TA

ZXMN6A09DN8TA

  • Available: 1500
  • Manufacturer: Diodes Incorporated
  • Part Number: ZXMN6A09DN8TA
  • Detailed Description: Mosfet Array 2 N-Channel (Dual) 60V 4.3A 1.25W Surface Mount 8-SO
  • Category: Discrete Semiconductor Products | Transistors - FETs, MOSFETs - Arrays
  • RoHS Status: ROHS3 Compliant
  • Datasheet: Datasheet
Reference Price (USD)
1+
$2.3400
10+
$2.1996
100+
$2.0826
1000+
$1.9656
10000+
$1.8486

Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.

Product Specifications

Manufacturer Diodes Incorporated
Series -
Package Tape & Reel (TR) | Cut Tape (CT)
Standard Package 500
Product Status Active
FET Type 2 N-Channel (Dual)
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25°C 4.3A
Rds On (Max) @ Id, Vgs 40mOhm @ 8.2A, 10V
Vgs(th) (Max) @ Id 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 24.2nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds 1407pF @ 40V
Power - Max 1.25W
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154, 3.90mm Width)
Supplier Device Package 8-SO
Base Product Number ZXMN6A09

Environmental & Export

RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
