3273112
3273112
- Available: 0
- 制造商: Phoenix Contact
- 产品编号: 3273112

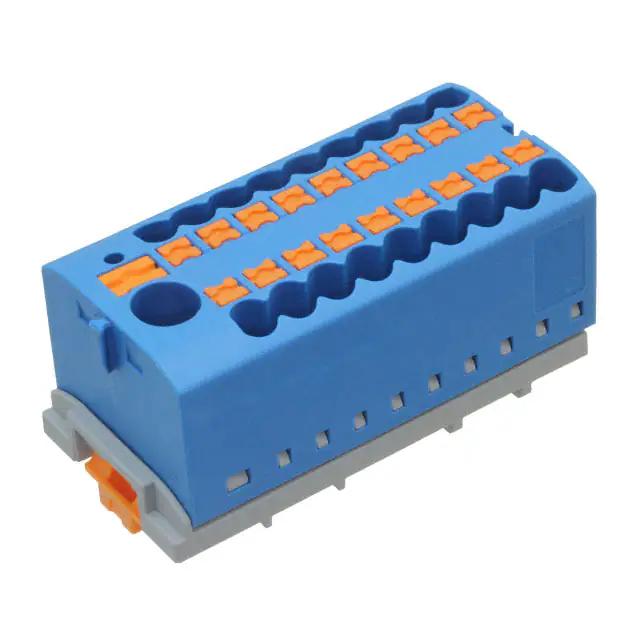

- 详细描述: 19 Position Terminal Block Blue Middle 28.6mm
- 类别: Connectors, Interconnects | Terminal Blocks - Specialized
- RoHS 状态： RoHS Compliant
- 规格书: 规格书
Reference Price (USD)
1+
$11.6520
10+
$10.9529
100+
$10.3703
1000+
$9.7877
10000+
$9.2051
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
产品属性
| 制造商 | Phoenix Contact |
|---|---|
| Series | CLIPLINE PTFIX |
| Package | Bulk |
| Standard Package | 8 |
| Product Status | Active |
| Type | Middle |
| Mounting Type | DIN Rail |
| Number of Positions | 19 |
| Number of Levels | 1 |
| Terminal - Width | 28.6mm |
| Termination Style | Push In, Spring |
| Current - IEC | 24 A |
| Voltage - IEC | 500 V |
| Current - UL | 5 A |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG | 8-20 AWG |
| Wire Gauge or Range - mm² | - |
| Features | Block of 9 |
| Housing Color | Blue |
| Length | 2.390" (60.71mm) |
| Height (Max) | 1.559" (39.60mm) |
| Material - Insulation | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Stripping Length | 12mm |
| Operating Temperature | - |
环境与出口
| RoHS 状态 | RoHS Compliant |
|---|---|
| 湿气敏感度等级 (MSL) | Not Applicable |
| REACH 状态 | |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
