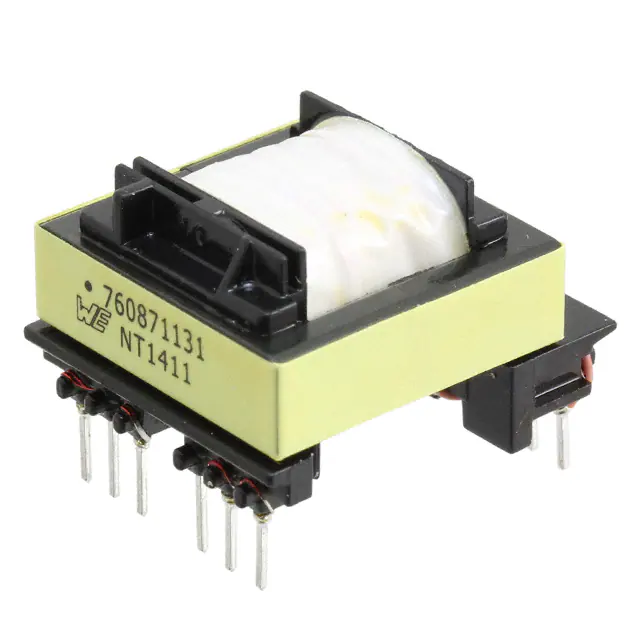

760871131
760871131
- Available: 0
- 制造商: Würth Elektronik
- 产品编号: 760871131
- 详细描述: LED Drivers, AC/DC SMPS For For AC/DC Converters SMPS Transformer 4000Vrms Isolation 60kHz Through Hole
- 类别: Transformers | Switching Converter, SMPS Transformers
- RoHS 状态： ROHS3 Compliant
- 规格书: 规格书
Reference Price (USD)
1+
$9.5880
10+
$9.0127
100+
$8.5333
1000+
$8.0539
10000+
$7.5745
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
产品属性
| 制造商 | Würth Elektronik |
|---|---|
| Series | WE-UNIT, MID-OLSTM |
| Package | Tray |
| Standard Package | 70 |
| Product Status | Active |
| Type | For AC/DC Converters |
| Applications | LED Drivers, AC/DC SMPS |
| Intended Chipset | - |
| Chipset Manufacturer | STMicroelectronics |
| Voltage - Primary | 120 ~ 420V |
| Voltage - Auxiliary | 15V @ 100mA |
| Voltage - Isolation | 4000Vrms |
| Inductance @ Frequency | 1.396mH @ 10kHz |
| Frequency | 60kHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Size / Dimension | 0.874" L x 0.984" W (22.20mm x 25.00mm) |
| Height - Seated (Max) | 0.635" (16.13mm) |
| Footprint | 0.874" L x 0.984" W (22.20mm x 25.00mm) |
环境与出口
| RoHS 状态 | ROHS3 Compliant |
|---|---|
| 湿气敏感度等级 (MSL) | 1 (Unlimited) |
| REACH 状态 | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.2000 |
