8000078311
8000078311
- Available: 0
- 制造商: Weidmüller
- 产品编号: 8000078311

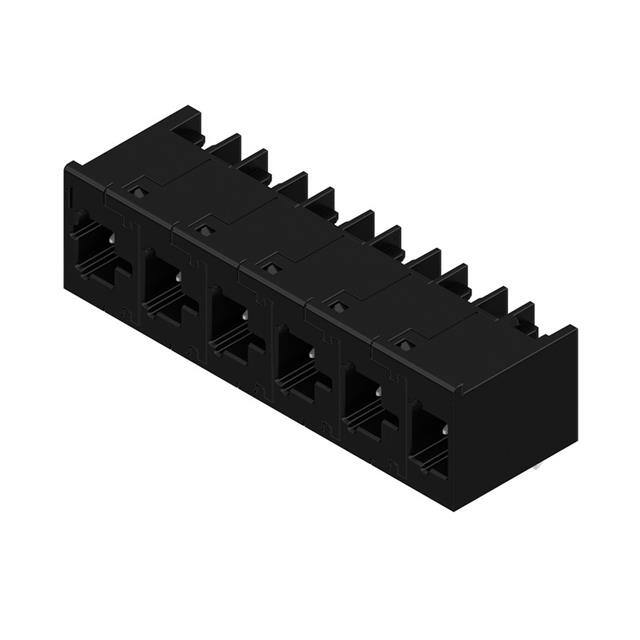

- 详细描述: 6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.295" (7.50mm) 90°, Right Angle Through Hole
- 类别: Connectors, Interconnects | Terminal Blocks - Headers, Plugs and Sockets
- RoHS 状态： ROHS3 Compliant
- 规格书: 规格书
Reference Price (USD)
1+
$4.1520
10+
$3.9029
100+
$3.6953
1000+
$3.4877
10000+
$3.2801
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
产品属性
| 制造商 | Weidmüller |
|---|---|
| Series | Omnimate 4.0 MHS |
| Package | Tube |
| Standard Package | 12 |
| Product Status | Active |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 6 |
| Positions Per Level | 6 |
| Number of Levels | 1 |
| Pitch | 0.295" (7.50mm) |
| Header Orientation | 90°, Right Angle |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | 26.8A |
| Voltage - IEC | 1 kV |
| Current - UL | 18.5 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Color | Black |
| Operating Temperature | -50°C ~ 125°C |
| Contact Mating Finish | Tin |
| Features | - |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | IP20 |
| Screw Size | - |
| Torque - Screw | - |
| Wire Strip Length | - |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA9T), Nylon 9T |
| Contact Tail Length | 0.126" (3.20mm) |
| Insulation Height | 0.469" (11.90mm) |
环境与出口
| RoHS 状态 | ROHS3 Compliant |
|---|---|
| 湿气敏感度等级 (MSL) | Not Applicable |
| REACH 状态 | |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
