8484-21B1-RK-TP
8484-21B1-RK-TP
- Available: 0
- 制造商: 3M
- 产品编号: 8484-21B1-RK-TP

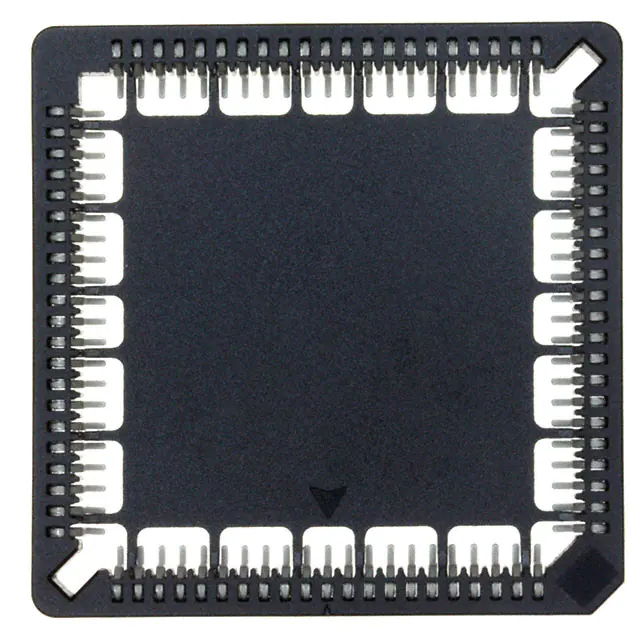

- 详细描述: 84 (4 x 21) Pos PLCC Socket Tin Surface Mount
- 类别: Connectors, Interconnects | Sockets for ICs, Transistors - IC Sockets
- RoHS 状态： RoHS Compliant
- 规格书: 规格书
Reference Price (USD)
1+
$3.7920
10+
$3.5645
100+
$3.3749
1000+
$3.1853
10000+
$2.9957
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
产品属性
| 制造商 | 3M |
|---|---|
| Series | 8400 |
| Package | Tube |
| Standard Package | 16 |
| Product Status | Active |
| Type | PLCC |
| Number of Positions or Pins (Grid) | 84 (4 x 21) |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 160.0µin (4.06µm) |
| Contact Material - Mating | Copper Alloy |
| Mounting Type | Surface Mount |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.050" (1.27mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 160.0µin (4.06µm) |
| Contact Material - Post | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Operating Temperature | -40°C ~ 105°C |
| Termination Post Length | 0.132" (3.35mm) |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 1 A |
| Contact Resistance | - |
| Base Product Number | 8484 |
环境与出口
| RoHS 状态 | RoHS Compliant |
|---|---|
| 湿气敏感度等级 (MSL) | 1 (Unlimited) |
| REACH 状态 | |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
