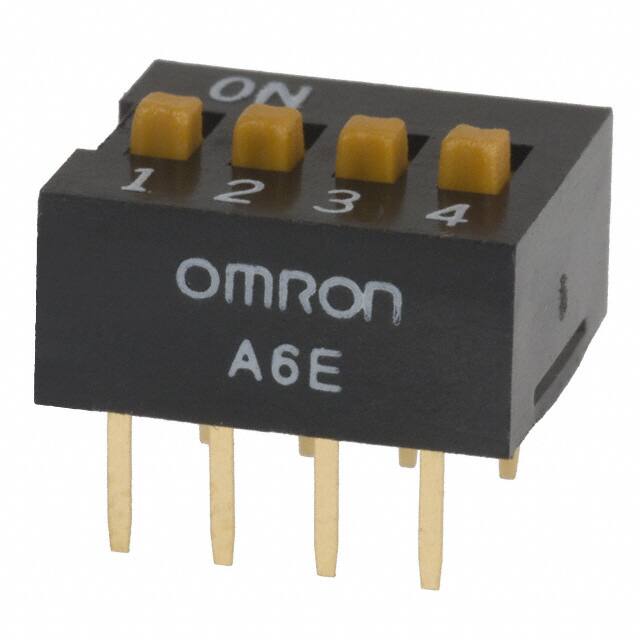

A6E-4104-N
A6E-4104-N
- Available: 0
- 制造商: Omron Electronics Inc-EMC Div
- 产品编号: A6E-4104-N
- 详细描述: Dip Switch SPST 4 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
- 类别: Switches | DIP Switches
- RoHS 状态： RoHS Compliant
- 规格书: 规格书
Reference Price (USD)
1+
$3.6720
10+
$3.4517
100+
$3.2681
1000+
$3.0845
10000+
$2.9009
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
产品属性
| 制造商 | Omron Electronics Inc-EMC Div |
|---|---|
| Series | A6E-N |
| Package | Tube |
| Standard Package | 40 |
| Product Status | Active |
| Circuit | SPST |
| Number of Positions | 4 |
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Raised |
| Contact Material | - |
| Contact Finish | Gold |
| Height Above Board | 0.277" (7.05mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | No |
| Features | - |
| Operating Temperature | -20°C ~ 70°C |
| Body Material | - |
| Length | 0.454" (11.52mm) |
| Mechanical Life | 1,000 Cycles |
| Electrical Life | 1,000 Cycles |
| Base Product Number | A6E |
环境与出口
| RoHS 状态 | RoHS Compliant |
|---|---|
| 湿气敏感度等级 (MSL) | 1 (Unlimited) |
| REACH 状态 | |
| ECCN | EAR99 |
| HTSUS | 8536.50.9065 |
