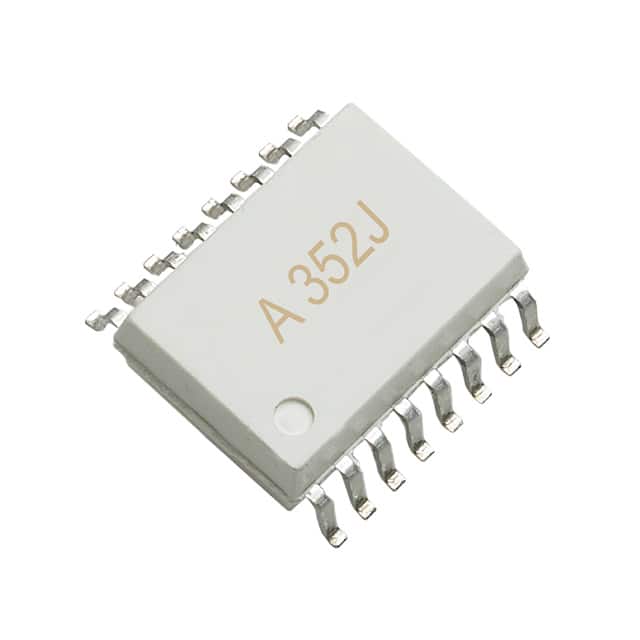

ACPL-352J-500E
ACPL-352J-500E
- Available: 3000
- 制造商: Broadcom Limited
- 产品编号: ACPL-352J-500E
- 详细描述: 5A Gate Driver Optical Coupling 5000Vrms 1 Channel 16-SOIC
- 类别: Isolators | Isolators - Gate Drivers
- RoHS 状态：
- 规格书: 规格书
Reference Price (USD)
1+
$9.5520
10+
$8.9789
100+
$8.5013
1000+
$8.0237
10000+
$7.5461
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
产品属性
| 制造商 | Broadcom Limited |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 850 |
| Product Status | Active |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 100kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 150ns, 150ns |
| Pulse Width Distortion (Max) | 50ns |
| Rise / Fall Time (Typ) | 37ns, 30ns |
| Current - Output High, Low | 4.5A, 4.5A |
| Current - Peak Output | 5A |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 15V ~ 30V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295, 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Approval Agency | CSA, IEC/EN/DIN, UR |
| Base Product Number | ACPL-352 |
环境与出口
| RoHS 状态 | |
|---|---|
| 湿气敏感度等级 (MSL) | 1 (Unlimited) |
| REACH 状态 | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
