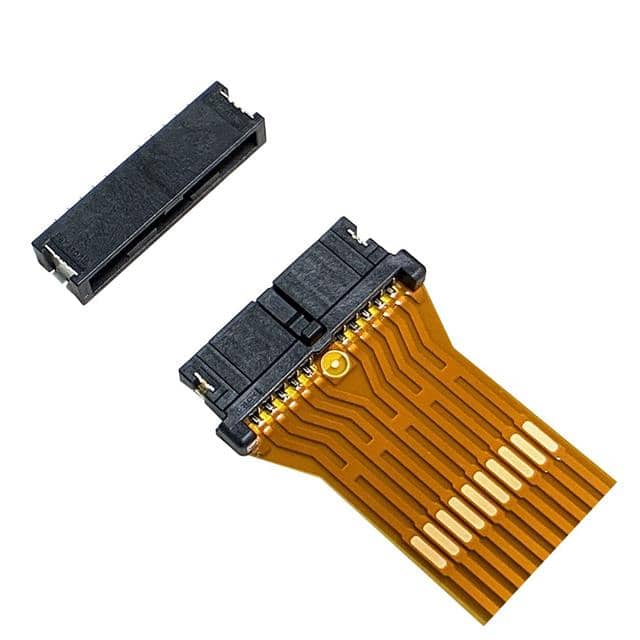

AYC1F0410
AYC1F0410
- Available: 800
- 制造商: Panasonic Electric Works
- 产品编号: AYC1F0410
- 详细描述: 4 Position FPC Connector Contacts, Top and Bottom 0.087" (2.20mm) Surface Mount, Right Angle
- 类别: Connectors, Interconnects | FFC, FPC Connector Assemblies
- RoHS 状态： ROHS3 Compliant
- 规格书: 规格书
Reference Price (USD)
1+
$3.6600
10+
$3.4404
100+
$3.2574
1000+
$3.0744
10000+
$2.8914
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
产品属性
| 制造商 | Panasonic Electric Works |
|---|---|
| Series | CF1 |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 800 |
| Product Status | Active |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top and Bottom |
| Number of Positions | 4 |
| Pitch | 0.087 (2.20mm) |
| Termination | Solder |
| FFC, FCB Thickness | - |
| Height Above Board | 0.232 (5.90mm) |
| Locking Feature | - |
| Cable End Type | - |
| Contact Material | Copper Alloy |
| Contact Finish | Tin |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | - |
| Features | Solder Retention |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 2A per Contact |
| Contact Finish Thickness | - |
| Housing Color | Black |
| Actuator Color | - |
| Mating Cycles | 10 |
环境与出口
| RoHS 状态 | ROHS3 Compliant |
|---|---|
| 湿气敏感度等级 (MSL) | 1 (Unlimited) |
| REACH 状态 | |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
