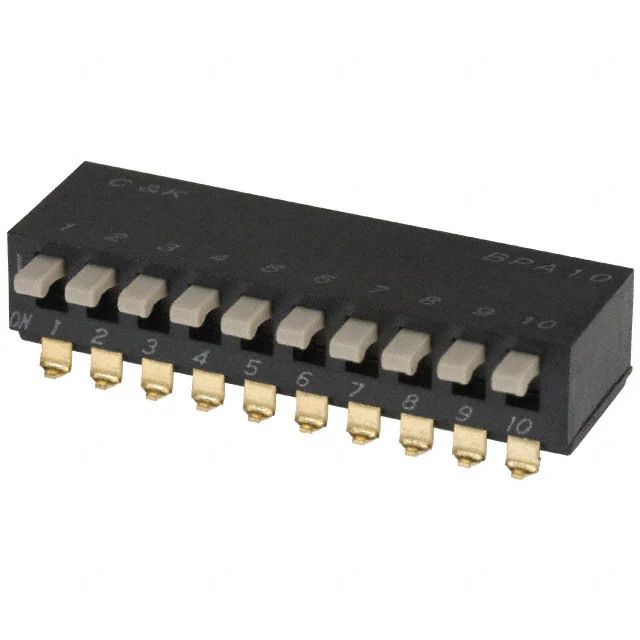

BPA10SB
BPA10SB
- Available: 0
- 制造商: C&K
- 产品编号: BPA10SB
- 详细描述: Dip Switch SPST 10 Position Surface Mount, Right Angle Piano Actuator 100mA 5VDC
- 类别: Switches | DIP Switches
- RoHS 状态： ROHS3 Compliant
- 规格书: 规格书
Reference Price (USD)
1+
$3.3600
10+
$3.1584
100+
$2.9904
1000+
$2.8224
10000+
$2.6544
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
产品属性
| 制造商 | C&K |
|---|---|
| Series | BPA |
| Package | Tube |
| Standard Package | 15 |
| Product Status | Active |
| Circuit | SPST |
| Number of Positions | 10 |
| Current Rating (Amps) | 100mA |
| Voltage Rating | 5VDC |
| Actuator Type | Piano |
| Actuator Level | Raised |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold |
| Height Above Board | 0.274" (6.95mm) |
| Mounting Type | Surface Mount, Right Angle |
| Termination Style | Gull Wing |
| Pitch | 0.100" (2.54mm), Full |
| Washable | Yes |
| Features | - |
| Operating Temperature | -20°C ~ 85°C |
| Body Material | Polyphenylene Sulfide (PPS) |
| Length | 1.075" (27.31mm) |
| Mechanical Life | 1,000 Cycles |
| Electrical Life | 1,000 Cycles |
环境与出口
| RoHS 状态 | ROHS3 Compliant |
|---|---|
| 湿气敏感度等级 (MSL) | 1 (Unlimited) |
| REACH 状态 | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.50.9065 |
