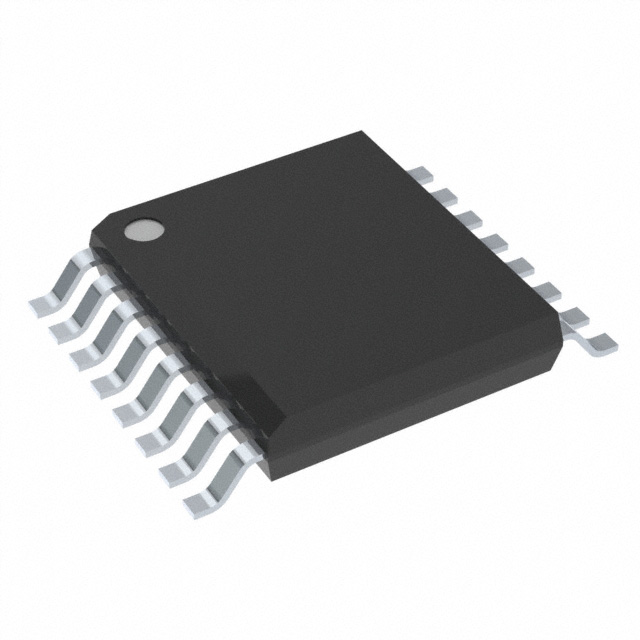

ISO7741FDBQR
ISO7741FDBQR
- Available: 7500
- 制造商: Texas Instruments
- 产品编号: ISO7741FDBQR
- 详细描述: General Purpose Digital Isolator 3000Vrms 4 Channel 100Mbps 85kV/µs CMTI 16-SSOP (0.154", 3.90mm Width)
- 类别: Isolators | Digital Isolators
- RoHS 状态： ROHS3 Compliant
- 规格书: 规格书
Reference Price (USD)
1+
$3.8040
10+
$3.5758
100+
$3.3856
1000+
$3.1954
10000+
$3.0052
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
产品属性
| 制造商 | Texas Instruments |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 2500 |
| Product Status | Active |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 3/1 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 3000Vrms |
| Common Mode Transient Immunity (Min) | 85kV/µs |
| Data Rate | 100Mbps |
| Propagation Delay tpLH / tpHL (Max) | 16ns, 16ns |
| Pulse Width Distortion (Max) | 4.9ns |
| Rise / Fall Time (Typ) | 2.4ns, 2.4ns |
| Voltage - Supply | 2.25V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.154, 3.90mm Width) |
| Supplier Device Package | 16-SSOP |
| Base Product Number | ISO7741 |
环境与出口
| RoHS 状态 | ROHS3 Compliant |
|---|---|
| 湿气敏感度等级 (MSL) | 2 (1 Year) |
| REACH 状态 | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
如何购买
| 购买流程 | 提交询盘 > 确认报价 > 发送订单 > 完成付款 > 发货 |
|---|---|
| 付款方式 | TT、PayPal、Escrow，更多请咨询我们的客户经理。 |
| 交期 | 对于库存产品，订单预计在3天内发货。 |
| 物流方式 | 我们为国际运输提供DHL、FedEx、UPS。 |
| 运输跟踪 | 订单发货后，我们会通过电子邮件等方式将快递运单号发送给您。 |
| 保修指南 | Cytech Systems提供6个月的质量风险保证。如果您在使用产品过程中发现产品质量与原技术参数不符，我们将承担6个月内的质量风险责任。 本保修不适用于因客户组装不当、客户未遵循说明、产品修改、疏忽或不当操作而导致缺陷的任何情况。 |
