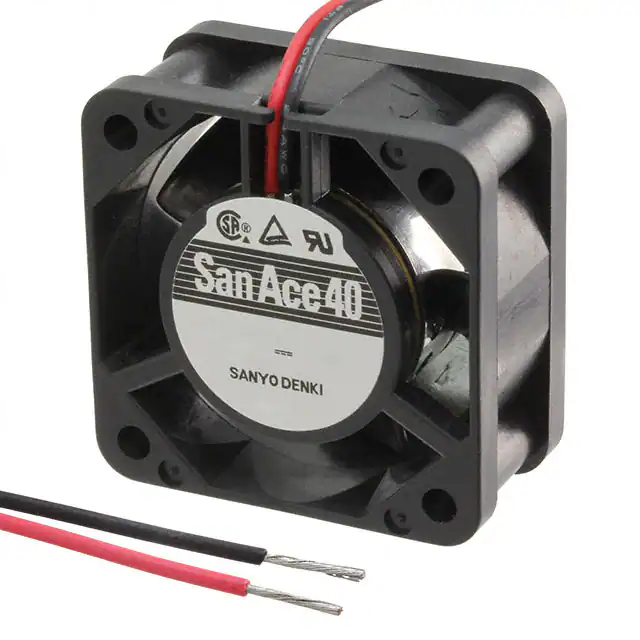

109P0424H601
109P0424H601
- Available: 700
- Manufacturer: Sanyo Denki America Inc.
- Part Number: 109P0424H601
- Detailed Description: Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 8.2 CFM (0.230m³/min) 3 Wire Leads
- Category: Fans, Thermal Management | Fans - DC Brushless Fans (BLDC)
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$18.2280
10+
$17.1343
100+
$16.2229
1000+
$15.3115
10000+
$14.4001
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Sanyo Denki America Inc. |
|---|---|
| Series | San Ace 40 |
| Package | Box |
| Standard Package | 70 |
| Product Status | Active |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 40mm L x 40mm H |
| Width | 20.00mm |
| Air Flow | 8.2 CFM (0.230m³/min) |
| Static Pressure | 0.280 in H2O (69.7 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach) |
| Noise | 35.0dB(A) |
| Power (Watts) | 1.68 W |
| RPM | 8300 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | CSA, TUV, UL |
| Weight | 0.101 lb (45.81 g) |
| Current Rating (Amps) | 0.070A |
| Voltage Range | 12 ~ 27.6VDC |
| Material - Frame | Plastic |
| Material - Blade | Plastic |
| Lifetime @ Temp. | 60000 Hrs @ 60°C |
| Base Product Number | 109P0424 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
