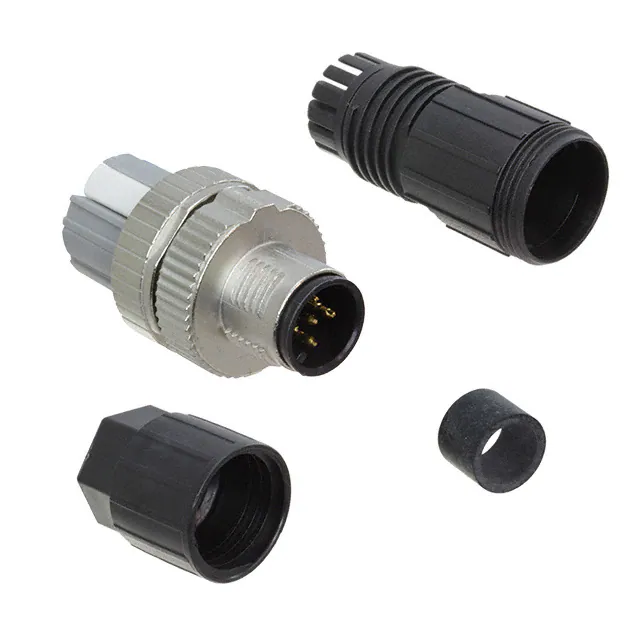

1424649
1424649
- Available: 3
- Manufacturer: Phoenix Contact
- Part Number: 1424649
- Detailed Description: 5 Position Circular Connector Plug, Male Pins Spring-Cage
- Category: Connectors, Interconnects | Circular Connectors - Circular Connector Assemblies
- RoHS Status：
- Datasheet: Datasheet
Reference Price (USD)
1+
$24.9000
10+
$23.4060
100+
$22.1610
1000+
$20.9160
10000+
$19.6710
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Series | SACC |
| Package | Bulk |
| Standard Package | 1 |
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 5 |
| Shell Size - Insert | M12-5 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Spring-Cage |
| Fastening Type | Push-Twist |
| Orientation | A |
| Primary Material | Metal |
| Shell Material | Zinc Die Cast |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Black, Silver |
| Ingress Protection | IP68/IP69 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 4A |
| Voltage Rating | 48VAC, 60VDC |
| Cable Opening | 0.157" ~ 0.315" (4.00mm ~ 8.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Backshell Material, Plating | Polyamide (PA66), Nylon 6/6 |
| Contact Material | Copper Tin |
| Contact Finish Thickness - Mating | - |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Applications | - |
| Base Product Number | - |
Environmental & Export
| RoHS Status | |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8536.69.4020 |
