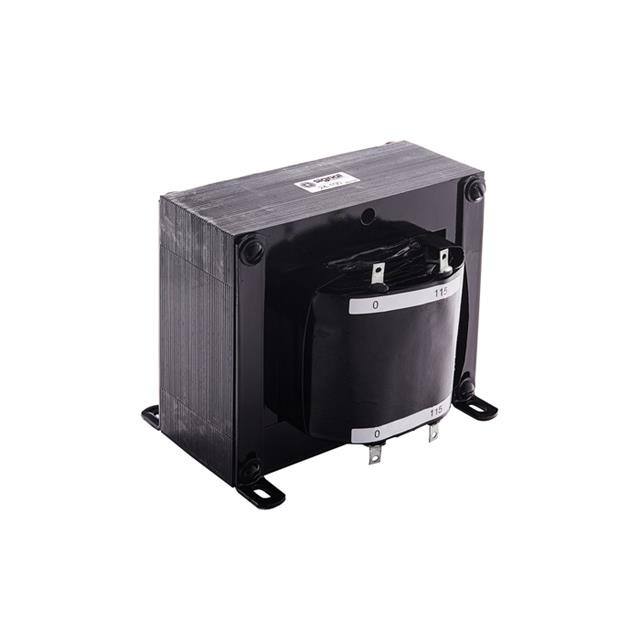

24-50
24-50
- Available: 0
- Manufacturer: Signal Transformer
- Part Number: 24-50
- Detailed Description: PWR XFMR LAMINATED 1200VA CHAS
- Category: Transformers | Power Transformers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$379.7234
10+
$356.9400
100+
$337.9538
1000+
$318.9677
10000+
$299.9815
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Signal Transformer |
|---|---|
| Series | - |
| Package | Box |
| Standard Package | 1 |
| Product Status | Active |
| Type | Laminated Core |
| Voltage - Primary | 105V, 115V, 125V |
| Voltage - Secondary (Full Load) | Parallel 12V, Series 24V |
| Current - Output (Max) | Parallel 100A, Series 50A |
| Primary Winding(s) | Single, Multiple Taps |
| Secondary Winding(s) | Dual |
| Center Tap | Yes |
| Power - Max | 1200VA |
| Mounting Type | Chassis Mount |
| Termination Style | Solder, Quick Connect |
| Size / Dimension | 162.00mm L x 158.80mm W |
| Height - Seated (Max) | 134.90mm |
| Voltage - Isolation | 1500Vrms |
| Weight | 32 lbs (14.5 kg) |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4065 |
