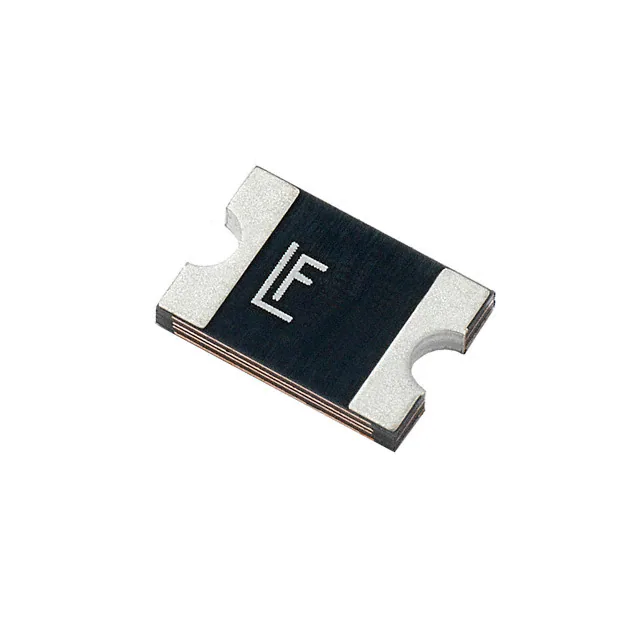

2920L200DR
2920L200DR
- Available: 500
- Manufacturer: Littelfuse Inc.
- Part Number: 2920L200DR
- Detailed Description: Polymeric PTC Resettable Fuse 15V 2 A Ih Surface Mount 2920 (7351 Metric), Concave
- Category: Circuit Protection | PTC Resettable Fuses
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.9480
10+
$0.8911
100+
$0.8437
1000+
$0.7963
10000+
$0.7489
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Littelfuse Inc. |
|---|---|
| Series | POLY-FUSE®, 2920L |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 1500 |
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 15V |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 2 A |
| Current - Trip (It) | 4 A |
| Time to Trip | 5 s |
| Resistance - Initial (Ri) (Min) | 50 mOhms |
| Resistance - Post Trip (R1) (Max) | 125 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 2920 (7351 Metric), Concave |
| Size / Dimension | 0.289 L x 0.202 W (7.35mm x 5.12mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.049 (1.25mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8533.40.8070 |
