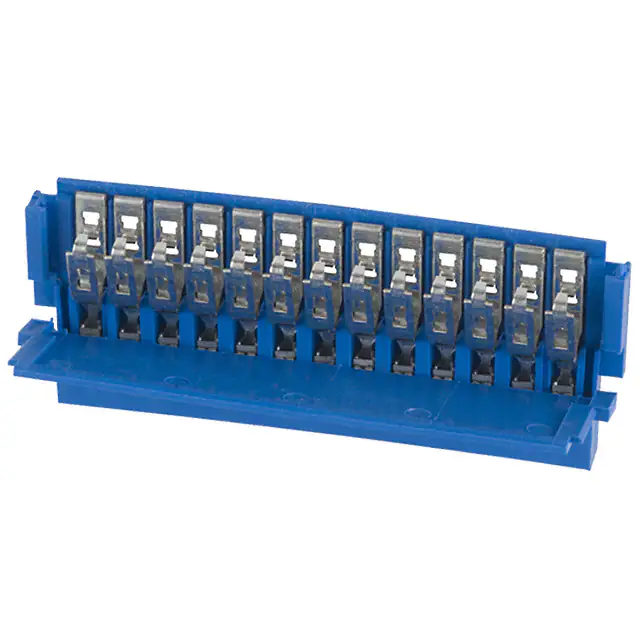

65801-013LF
65801-013LF
- Available: 1000
- Manufacturer: Amphenol ICC (FCI)
- Part Number: 65801-013LF
- Detailed Description: 13 Position FFC, FPC Connector Receptacle 0.100" (2.54mm) Free Hanging (In-Line)
- Category: Connectors, Interconnects | FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
- RoHS Status： RoHS Compliant
Reference Price (USD)
1+
$3.0960
10+
$2.9102
100+
$2.7554
1000+
$2.6006
10000+
$2.4458
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Amphenol ICC (FCI) |
|---|---|
| Series | Clincher™ |
| Package | Tray |
| Standard Package | 30 |
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Free Hanging (In-Line) |
| Connector/Contact Type | Receptacle |
| Number of Positions | 13 |
| Pitch | 0.100" (2.54mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm, 0.33mm |
| Height Above Board | - |
| Locking Feature | Slide Lock |
| Cable End Type | Straight, Tapered |
| Contact Material | Copper Nickel Alloy |
| Contact Finish | Tin |
| Housing Material | Thermoplastic |
| Actuator Material | - |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 500V |
| Operating Temperature | -65°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 2A |
| Contact Finish Thickness | 100.0µin (2.54µm) |
| Housing Color | Blue |
| Actuator Color | Black |
| Mating Cycles | 100 |
| Base Product Number | 65801 |
Environmental & Export
| RoHS Status | RoHS Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4051 |
