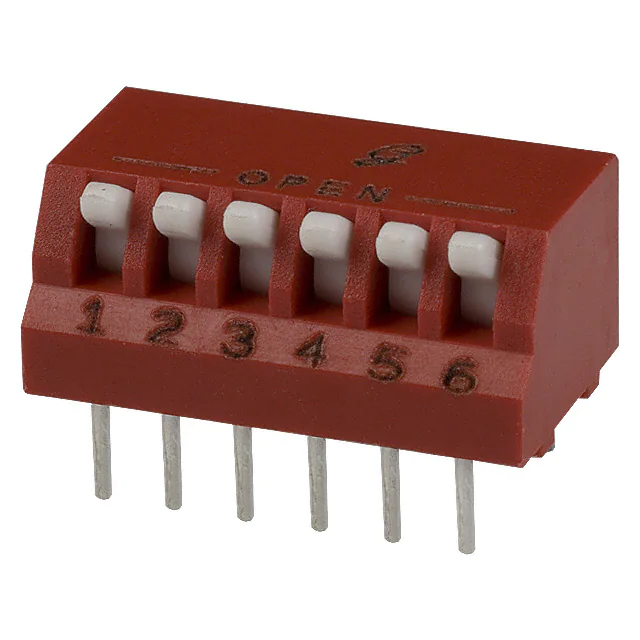

76PSB06ST

76PSB06ST

76PSB06ST

  • Available: 45
  • Manufacturer: Grayhill Inc.
  • Part Number: 76PSB06ST
  • Detailed Description: Dip Switch SPST 6 Position Through Hole, Right Angle Piano Actuator 150mA 30VDC
  • Category: Switches | DIP Switches
  • RoHS Status: RoHS Compliant
  • Datasheet: Datasheet
Reference Price (USD)
1+
$2.3280
10+
$2.1883
100+
$2.0719
1000+
$1.9555
10000+
$1.8391

Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.

Product Specifications

Manufacturer Grayhill Inc.
Series 76
Package Tube
Standard Package 15
Product Status Active
Circuit SPST
Number of Positions 6
Current Rating (Amps) 150mA
Voltage Rating 30VDC
Actuator Type Piano
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.301" (7.65mm)
Mounting Type Through Hole | Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm) | Full
Washable Yes
Features Tape Seal
Operating Temperature -40°C ~ 85°C
Body Material Thermoplastic
Length 0.680" (17.27mm)
Mechanical Life 2 | 000 Cycles
Electrical Life 2 | 000 Cycles
Base Product Number 76PSB

Environmental & Export

RoHS Status RoHS Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
