836199003
836199003
- Available: 2500
- Manufacturer: Molex
- Part Number: 836199003

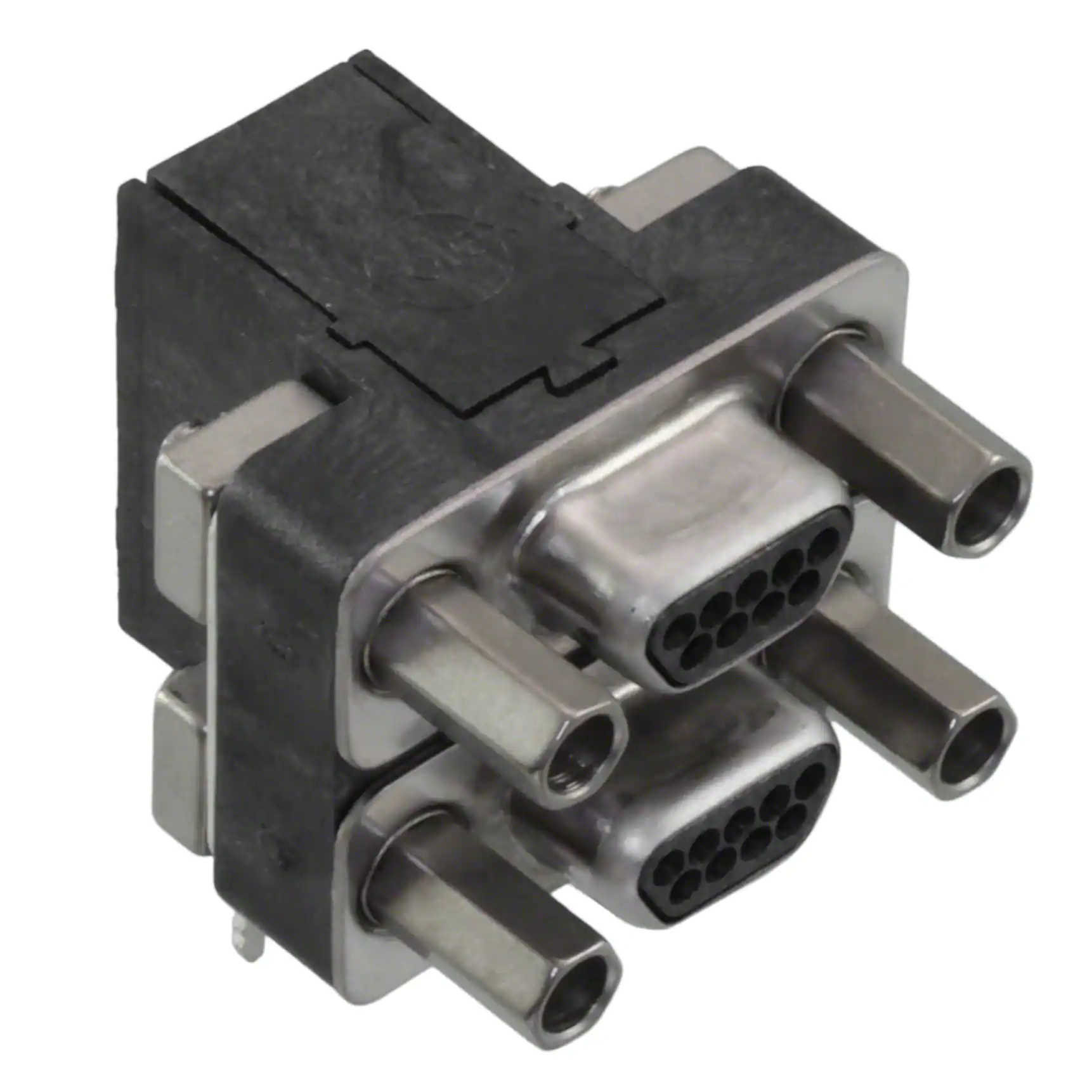

- Detailed Description: 9, 9 Position D-Type, Micro-D - Stacked Plug, Male Pins Connector
- Category: Connectors, Interconnects | D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$36.6120
10+
$34.4153
100+
$32.5847
1000+
$30.7541
10000+
$28.9235
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Molex |
|---|---|
| Series | Commercial Micro-D Series 83619 |
| Package | Tube |
| Standard Package | 26 |
| Product Status | Active |
| Connector Style | D-Type, Micro-D - Stacked |
| Connector Type | Plug, Male Pins |
| Number of Positions | 9, 9 |
| Number of Rows | 2, 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (2-56) |
| Termination | Solder |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 1A |
| Backset Spacing | 0.270" (6.86mm) |
| Features | Board Lock, Shielded |
| Voltage Rating | - |
| Color | - |
| Contact Form | - |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Wire Gauge | - |
| Contact Material | Copper Alloy |
| Operating Temperature | -55°C ~ 125°C |
| Base Product Number | 083619 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
