9RA0812H10011
9RA0812H10011
- Available: 0
- Manufacturer: Sanyo Denki America Inc.
- Part Number: 9RA0812H10011

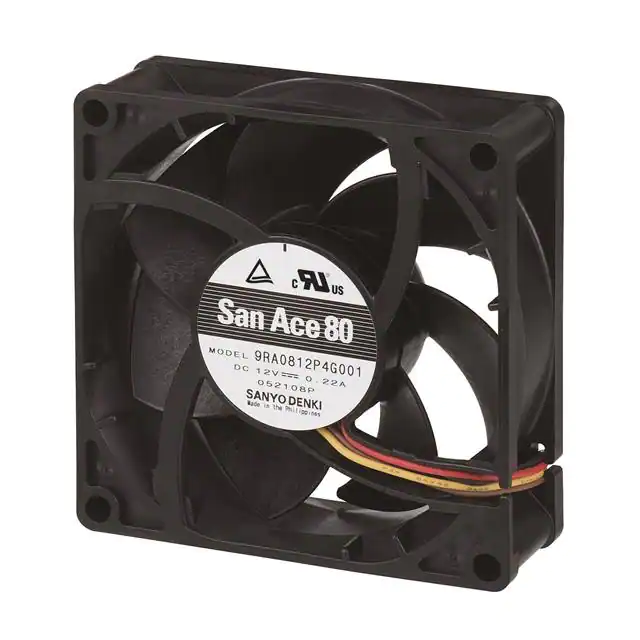

- Detailed Description: Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 77.3 CFM (2.19m³/min) 3 Wire Leads
- Category: Fans, Thermal Management | Fans - DC Brushless Fans (BLDC)
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$33.7440
10+
$31.7194
100+
$30.0322
1000+
$28.3450
10000+
$26.6578
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Sanyo Denki America Inc. |
|---|---|
| Series | San Ace 80 |
| Package | Box |
| Standard Package | 36 |
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 80mm L x 80mm H |
| Width | 38.00mm |
| Air Flow | 77.3 CFM (2.19m³/min) |
| Static Pressure | 0.670 in H2O (166.9 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Noise | 46.0dB(A) |
| Power (Watts) | 7.92 W |
| RPM | 6100 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | cURus, TUV |
| Weight | - |
| Current Rating (Amps) | 0.660A |
| Voltage Range | 7 ~ 13.8VDC |
| Material - Frame | Plastic |
| Material - Blade | - |
| Lifetime @ Temp. | Varies Based on Temperature |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
