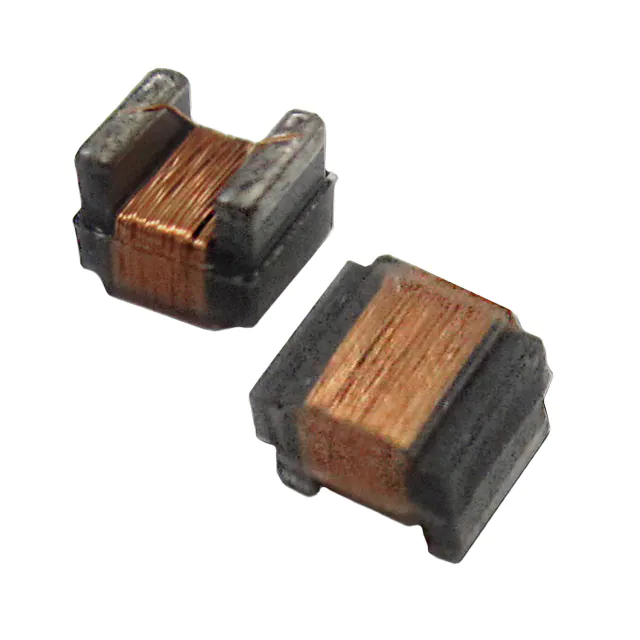

AISC-0805-R10J-T
AISC-0805-R10J-T
- Available: 1000
- Manufacturer: Abracon LLC
- Part Number: AISC-0805-R10J-T
- Detailed Description: 100 nH Unshielded Drum Core, Wirewound Inductor 400 mA 460mOhm Max 0805 (2012 Metric)
- Category: Inductors, Coils, Chokes | Fixed Inductors
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.3600
10+
$0.3384
100+
$0.3204
1000+
$0.3024
10000+
$0.2844
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Abracon LLC |
|---|---|
| Series | AISC-0805 |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 2000 |
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 100 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 460mOhm Max |
| Q @ Freq | 50 @ 500MHz |
| Frequency - Self Resonant | 1.2GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 150 MHz |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.090 L x 0.068 W (2.29mm x 1.73mm) |
| Height - Seated (Max) | 0.061 (1.55mm) |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.50.8000 |
