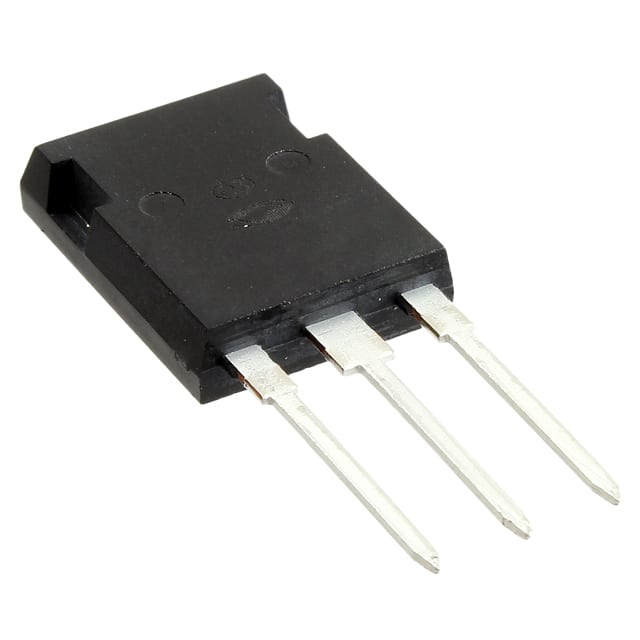

APT30D40BCTG
APT30D40BCTG
- Available: 0
- Manufacturer: Microchip Technology
- Part Number: APT30D40BCTG
- Detailed Description: Diode Array 1 Pair Common Cathode Standard 400 V 30A Through Hole TO-247-3
- Category: Discrete Semiconductor Products | Diodes - Rectifiers - Arrays
- RoHS Status： RoHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$5.4360
10+
$5.1098
100+
$4.8380
1000+
$4.5662
10000+
$4.2944
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Microchip Technology |
|---|---|
| Series | - |
| Package | Tube |
| Standard Package | 1 |
| Product Status | Active |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Current - Average Rectified (Io) (per Diode) | 30A |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 32 ns |
| Current - Reverse Leakage @ Vr | 250 µA @ 400 V |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 [B] |
| Base Product Number | APT30D40 |
Environmental & Export
| RoHS Status | RoHS Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
