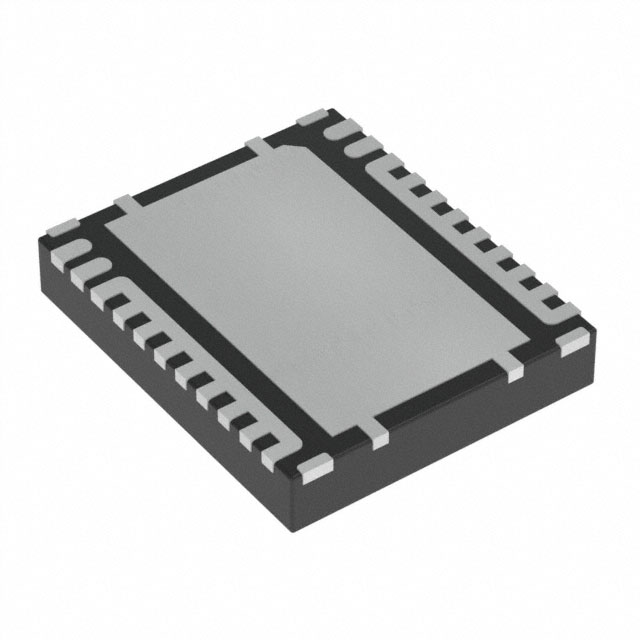

CSD88599Q5DC
CSD88599Q5DC
- Available: 7500
- Manufacturer: Texas Instruments
- Part Number: CSD88599Q5DC
- Detailed Description: Mosfet Array 2 N-Channel (Half Bridge) 60V - 12W Surface Mount 22-VSON-CLIP (5x6)
- Category: Discrete Semiconductor Products | Transistors - FETs, MOSFETs - Arrays
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$5.4840
10+
$5.1550
100+
$4.8808
1000+
$4.6066
10000+
$4.3324
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| Series | NexFET™ |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 2500 |
| Product Status | Active |
| FET Type | 2 N-Channel (Half Bridge) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | - |
| Rds On (Max) @ Id, Vgs | 2.1mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 27nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 4840pF @ 30V |
| Power - Max | 12W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 22-PowerTFDFN |
| Supplier Device Package | 22-VSON-CLIP (5x6) |
| Base Product Number | CSD88599Q5 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
