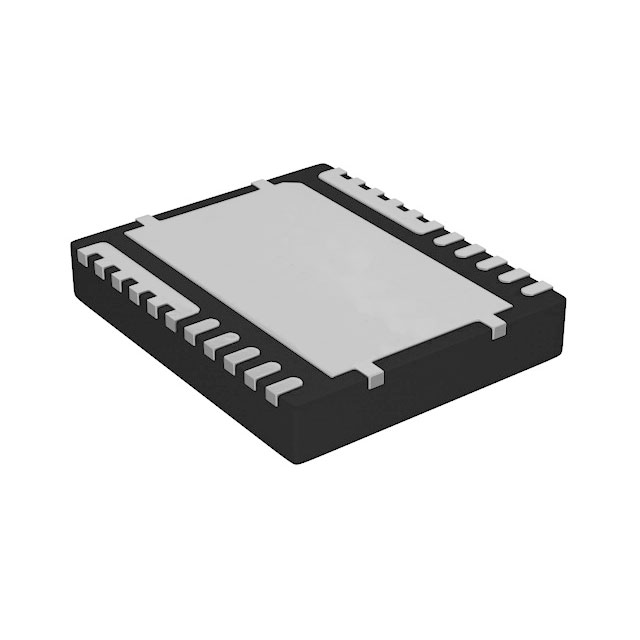

CSD95378BQ5MCT
CSD95378BQ5MCT
- Available: 750
- Manufacturer: Texas Instruments
- Part Number: CSD95378BQ5MCT
- Detailed Description: Half Bridge Driver Synchronous Buck Converters Power MOSFET 12-VSON (5x6)
- Category: Integrated Circuits (ICs) | PMIC - Full, Half-Bridge Drivers
- RoHS Status： RoHS non-compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$7.9560
10+
$7.4786
100+
$7.0808
1000+
$6.6830
10000+
$6.2852
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| Series | NexFET™ |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 250 |
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | Synchronous Buck Converters |
| Interface | PWM |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | - |
| Current - Output / Channel | 60A |
| Current - Peak Output | 90A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 4.5V ~ 16V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit, Status Flag |
| Fault Protection | Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 12-PowerTFDFN |
| Supplier Device Package | 12-VSON (5x6) |
| Base Product Number | CSD95378BQ5 |
Environmental & Export
| RoHS Status | RoHS non-compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
