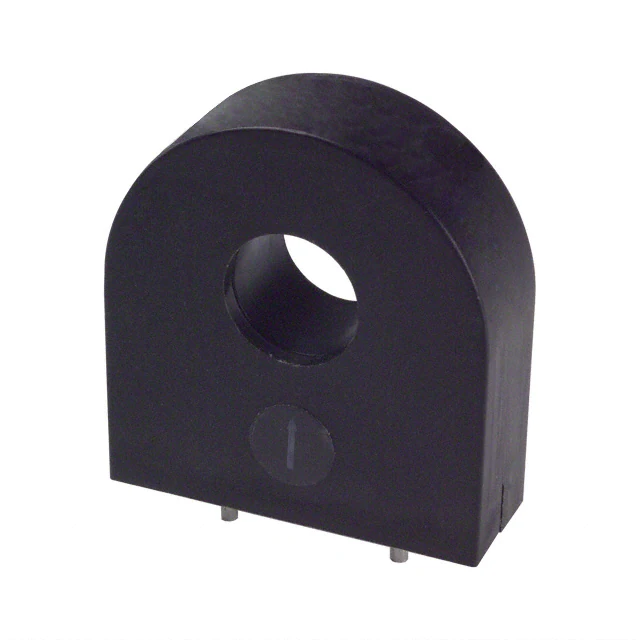

CST206-2T
CST206-2T
- Available: 81
- Manufacturer: Triad Magnetics
- Part Number: CST206-2T
- Detailed Description: 80 A Current Sense Transformer 20kHz ~ 200kHz 3.5Ohm Max 56 mH Through Hole
- Category: Transformers | Current Sense Transformers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$13.1880
10+
$12.3967
100+
$11.7373
1000+
$11.0779
10000+
$10.4185
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Triad Magnetics |
|---|---|
| Series | CST |
| Package | Bulk |
| Standard Package | 1 |
| Product Status | Active |
| Frequency Range | 20kHz ~ 200kHz |
| Type | Non-Invasive (Solid Core) |
| Current Rating (Amps) | 80 A |
| Inductance | 56 mH |
| ET (Volt-Time) | 4000VµS |
| Turns Ratio - Primary:Secondary | - |
| Current Ratio | 200:1 |
| DC Resistance (DCR) | 3.5Ohm Max |
| Ratings | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.075" L x 0.400" W (27.31mm x 10.16mm) |
| Height - Seated (Max) | 1.225" (31.12mm) |
| Termination Style | PC Pin |
| Weight | - |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4035 |
