D09S33E4GV00LF
D09S33E4GV00LF
- Available: 0
- Manufacturer: Amphenol ICC (FCI)
- Part Number: D09S33E4GV00LF

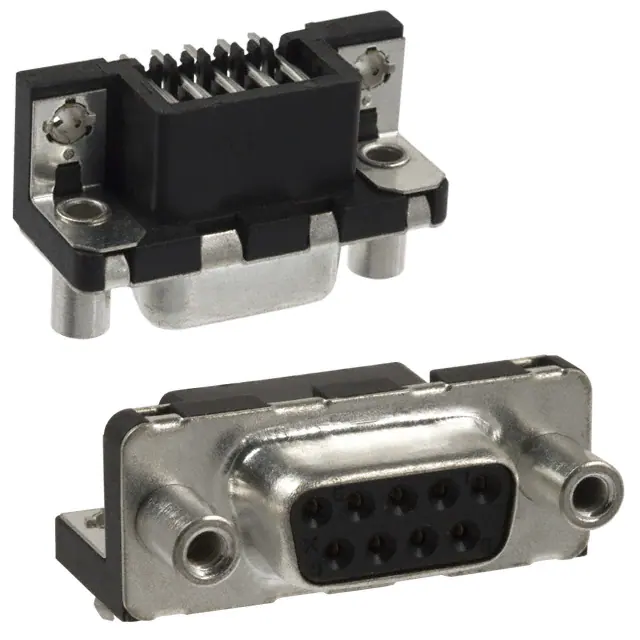

- Detailed Description: 9 Position D-Sub Receptacle, Female Sockets Connector
- Category: Connectors, Interconnects | D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.2440
10+
$2.1094
100+
$1.9972
1000+
$1.8850
10000+
$1.7728
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Amphenol ICC (FCI) |
|---|---|
| Series | Delta D |
| Package | Tray |
| Standard Package | 30 |
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 1 (DE, E) |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Shell Material, Finish | Steel, Tin-Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A per Contact |
| Backset Spacing | 0.318" (8.08mm) |
| Features | Board Lock, Mounting Brackets |
| Voltage Rating | 300V |
| Color | Black |
| Contact Form | - |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Wire Gauge | - |
| Contact Material | Phosphor Bronze |
| Operating Temperature | -55°C ~ 125°C |
| Base Product Number | D09S33 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
