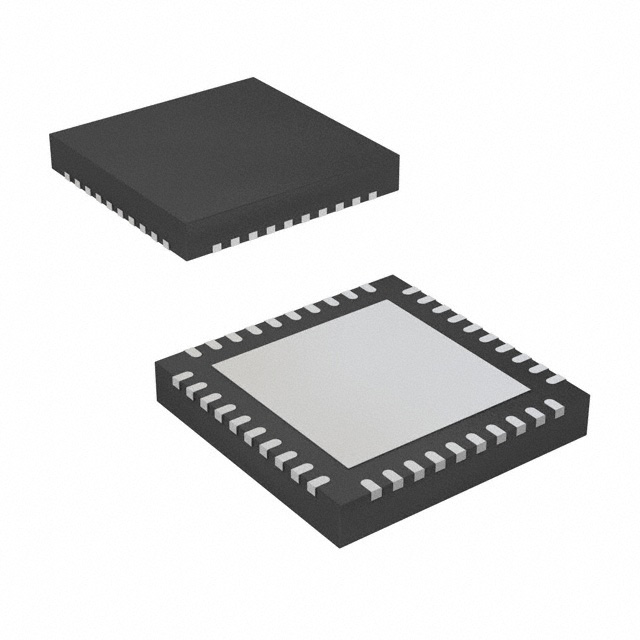

DA14583-01F01AT2
DA14583-01F01AT2
- Available: 3000
- Manufacturer: Renesas Design Germany GmbH
- Part Number: DA14583-01F01AT2
- Detailed Description: IC RF TxRx + MCU Bluetooth Bluetooth v4.1 2.4GHz 40-VFQFN Exposed Pad
- Category: RF/IF and RFID | RF Transceiver ICs
- RoHS Status： RoHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$6.8640
10+
$6.4522
100+
$6.1090
1000+
$5.7658
10000+
$5.4226
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Renesas Design Germany GmbH |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 5000 |
| Product Status | Not For New Designs |
| Type | TxRx + MCU |
| RF Family/Standard | Bluetooth |
| Protocol | Bluetooth v4.1 |
| Modulation | - |
| Frequency | 2.4GHz |
| Data Rate (Max) | - |
| Power - Output | -1dBm |
| Sensitivity | -93dBm |
| Memory Size | 1Mb Flash, 32kB OTP, 84kB ROM, 50kB SRAM |
| Serial Interfaces | I²C, SPI, UART |
| GPIO | 24 |
| Voltage - Supply | 2.35V ~ 3.3V |
| Current - Receiving | 3.7mA |
| Current - Transmitting | 3.4mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-QFN (5x5) |
| Base Product Number | DA14583 |
Environmental & Export
| RoHS Status | RoHS Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | |
| ECCN | 5A992C |
| HTSUS | 8542.39.0001 |
