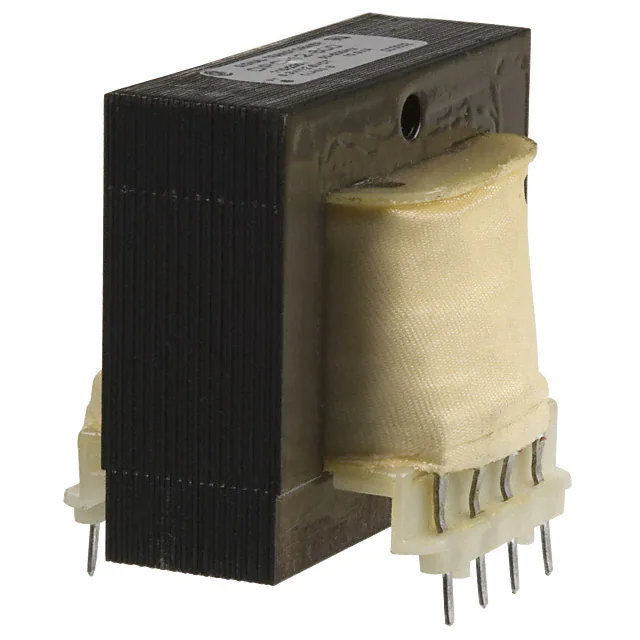

DPC-24-450
DPC-24-450
- Available: 0
- Manufacturer: Signal Transformer
- Part Number: DPC-24-450
- Detailed Description: PWR XFMR LAMINATED 10VA TH
- Category: Transformers | Power Transformers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$19.3080
10+
$18.1495
100+
$17.1841
1000+
$16.2187
10000+
$15.2533
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Signal Transformer |
|---|---|
| Series | DPC |
| Package | Box |
| Standard Package | 50 |
| Product Status | Active |
| Type | Laminated Core |
| Voltage - Primary | 115V, 230V |
| Voltage - Secondary (Full Load) | Parallel 12V, Series 24V |
| Current - Output (Max) | Parallel 900mA, Series 450mA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Center Tap | No |
| Power - Max | 10VA |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Size / Dimension | 47.60mm L x 36.50mm W |
| Height - Seated (Max) | 41.27mm |
| Voltage - Isolation | 1500Vrms |
| Weight | 0.563 lb (255.37 g) |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4035 |
