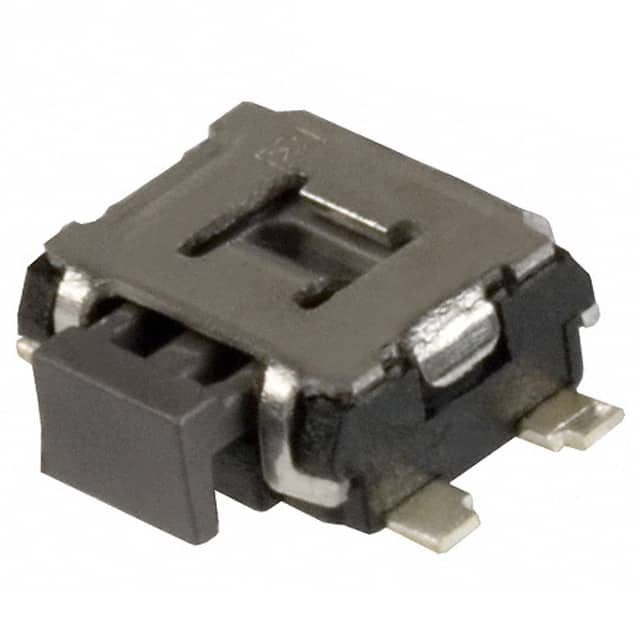

EVQ-P7L01K
EVQ-P7L01K
- Available: 0
- Manufacturer: Panasonic Electronic Components
- Part Number: EVQ-P7L01K
- Detailed Description: Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
- Category: Switches | Tactile Switches
- RoHS Status：
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Panasonic Electronic Components |
|---|---|
| Series | EVQP7 |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 5000 |
| Product Status | Obsolete |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Type | Rectangular Button |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Height off PCB, Vertical | - |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Side Actuated |
| Termination Style | Gull Wing |
| Outline | 4.70mm x 2.90mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 160gf |
| Ingress Protection | - |
| Features | Board Guide |
| Operating Temperature | -20°C ~ 70°C |
| Actuator Material | - |
| Switch Travel | 0.20mm |
| Mechanical Life | 100,000 Cycles |
| Base Product Number | EVQ-P7 |
Environmental & Export
| RoHS Status | |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.50.9031 |
