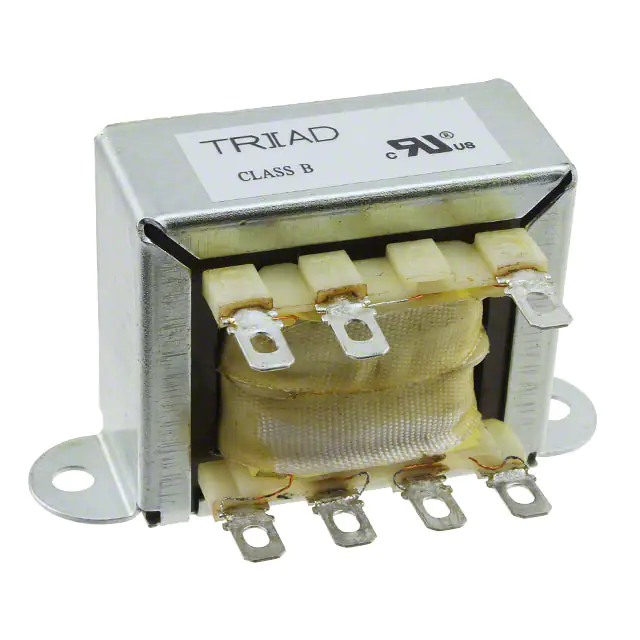

FD5-10
FD5-10
- Available: 550
- Manufacturer: Triad Magnetics
- Part Number: FD5-10
- Detailed Description: PWR XFMR LAMINATED 12VA CHAS MT
- Category: Transformers | Power Transformers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$16.1040
10+
$15.1378
100+
$14.3326
1000+
$13.5274
10000+
$12.7222
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Triad Magnetics |
|---|---|
| Series | Quick Pack |
| Package | Box |
| Standard Package | 1 |
| Product Status | Active |
| Type | Laminated Core |
| Voltage - Primary | 115V | 230V |
| Voltage - Secondary (Full Load) | 10V |
| Current - Output (Max) | 1.2A |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Single |
| Center Tap | Yes |
| Power - Max | 12VA |
| Mounting Type | Chassis Mount |
| Termination Style | Solder | Quick Connect - 0.187" (4.7mm) |
| Size / Dimension | 71.42mm L x 34.93mm W |
| Height - Seated (Max) | 41.28mm |
| Voltage - Isolation | 2500VAC |
| Weight | 0.7 lb (317.51 g) |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4035 |
