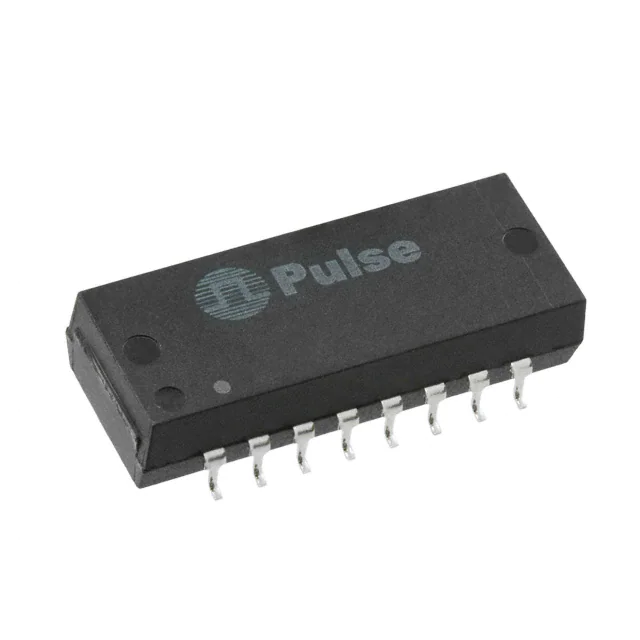

H1012NL

H1012NL

H1012NL

  • Available: 60
  • Manufacturer: Pulse Electronics Network
  • Part Number: H1012NL
  • Detailed Description: - Isolation and Data Interface (Encapsulated) Pulse Transformer 1CT:1CT Surface Mount
  • Category: Transformers | Pulse Transformers
  • RoHS Status: RoHS Compliant
  • Datasheet: Datasheet
Reference Price (USD)
1+
$7.2120
10+
$6.7793
100+
$6.4187
1000+
$6.0581
10000+
$5.6975

Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.

Product Specifications

Manufacturer Pulse Electronics Network
Series -
Package Tube
Standard Package 20
Product Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance -
ET (Volt-Time) -
Turns Ratio - Primary:Secondary 1CT:1CT
Mounting Type Surface Mount
Size / Dimension 1.000" L x 0.390" W (25.40mm x 9.91mm)
Height - Seated (Max) 0.245" (6.22mm)
Operating Temperature 0°C ~ 70°C
Weight 0.11 oz (3.13 g)

Environmental & Export

RoHS Status RoHS Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status
ECCN EAR99
HTSUS 8504.31.2000
