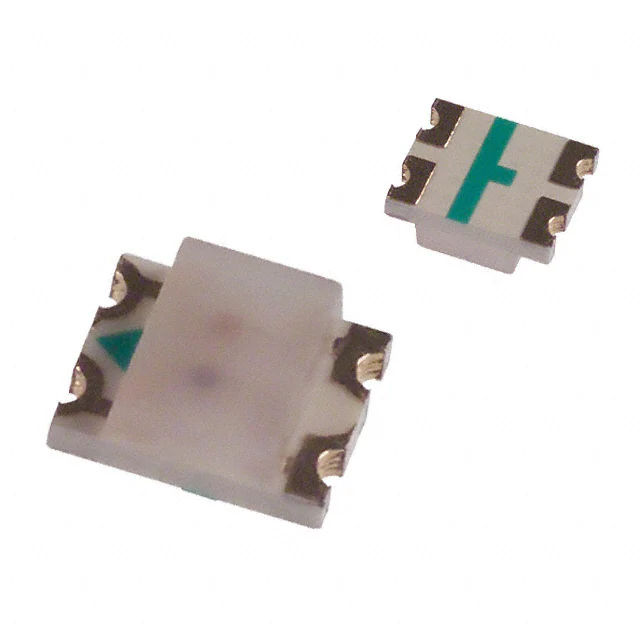

HSMF-C118
HSMF-C118
- Available: 3000
- Manufacturer: Broadcom Limited
- Part Number: HSMF-C118
- Detailed Description: Red, Green, Blue (RGB) 626nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 1.9V Red, 3.5V Green, 3.5V Blue 1210 (3225 Metric)
- Category: Optoelectronics | LED Indication - Discrete
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.7480
10+
$2.5831
100+
$2.4457
1000+
$2.3083
10000+
$2.1709
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Broadcom Limited |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 3000 |
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 90mcd Red, 120mcd Green, 40mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 2.70mm |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 3.5V Green, 3.5V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 135° Red, 130° Green, 125° Blue |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 626nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | 637nm Red, 523nm Green, 468nm Blue |
| Features | - |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | Chip LED |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 1.10mm |
| Base Product Number | HSMF-C118 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.41.0000 |
