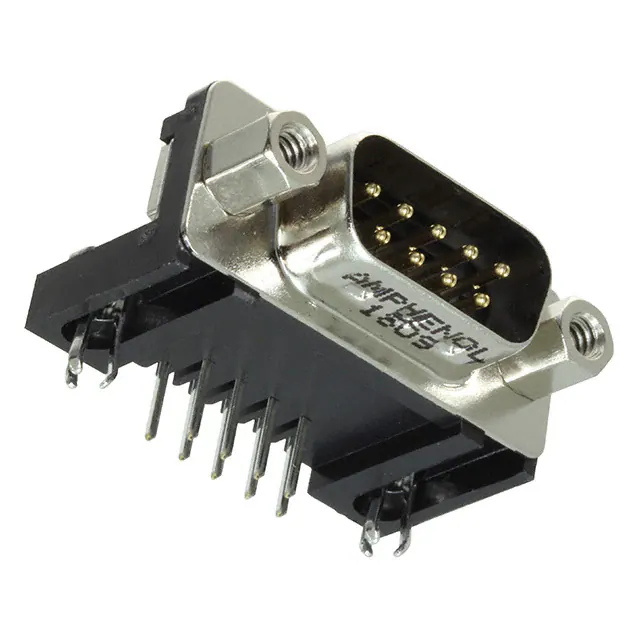

L717SDE09P1ACH4F
L717SDE09P1ACH4F
- Available: 0
- Manufacturer: Amphenol ICC (Commercial Products)
- Part Number: L717SDE09P1ACH4F
- Detailed Description: 9 Position D-Sub Plug, Male Pins Connector
- Category: Connectors, Interconnects | D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
- RoHS Status： RoHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.3360
10+
$3.1358
100+
$2.9690
1000+
$2.8022
10000+
$2.6354
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Amphenol ICC (Commercial Products) |
|---|---|
| Series | SD |
| Package | Tray |
| Standard Package | 90 |
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 1 (DE, E) |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A |
| Backset Spacing | 0.406" (10.30mm) |
| Features | Board Lock, Grounding Indents |
| Voltage Rating | 250V |
| Color | Black |
| Contact Form | Stamped |
| Dielectric Material | Thermoplastic, Glass Filled |
| Wire Gauge | - |
| Contact Material | Brass |
| Operating Temperature | -55°C ~ 125°C |
| Base Product Number | L717SDE09 |
Environmental & Export
| RoHS Status | RoHS Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
