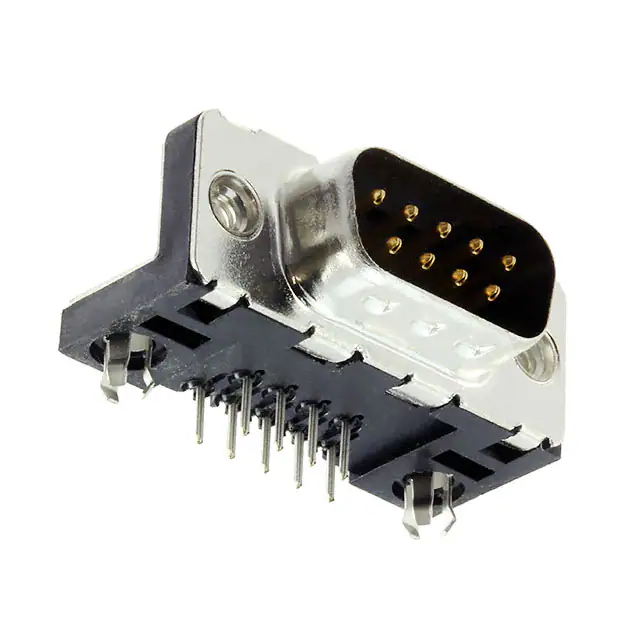

LD09P33E4GX00LF
LD09P33E4GX00LF
- Available: 700
- Manufacturer: Amphenol ICC (FCI)
- Part Number: LD09P33E4GX00LF
- Detailed Description: 9 Position D-Sub Plug, Male Pins Connector
- Category: Connectors, Interconnects | D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
- RoHS Status： RoHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.3560
10+
$1.2746
100+
$1.2068
1000+
$1.1390
10000+
$1.0712
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Amphenol ICC (FCI) |
|---|---|
| Series | LD |
| Package | Tray |
| Standard Package | 70 |
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 1 (DE, E) |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Shell Material, Finish | Steel, Tin-Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A per Contact |
| Backset Spacing | 0.318" (8.08mm) |
| Features | Board Lock, Grounding Indents |
| Voltage Rating | 250V |
| Color | Black |
| Contact Form | - |
| Dielectric Material | Thermoplastic |
| Wire Gauge | - |
| Contact Material | Copper Alloy |
| Operating Temperature | -55°C ~ 105°C |
| Base Product Number | LD09P33 |
Environmental & Export
| RoHS Status | RoHS Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
