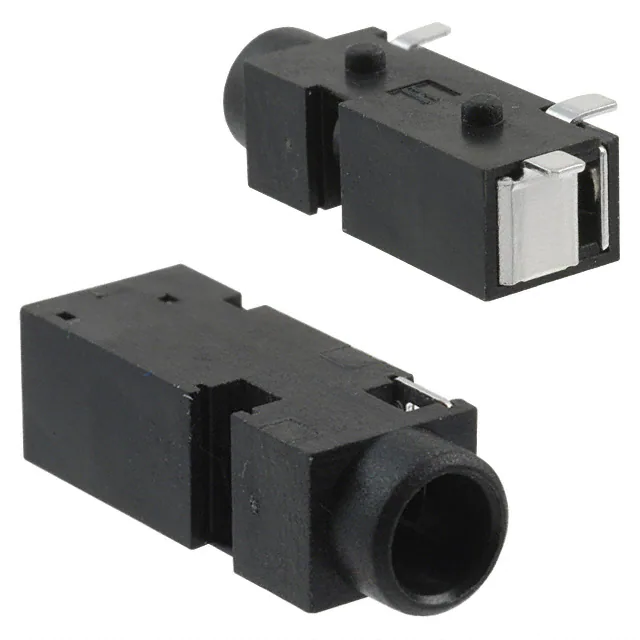

MJ-3523-SMT-TR
MJ-3523-SMT-TR
- Available: 500
- Manufacturer: CUI Devices
- Part Number: MJ-3523-SMT-TR
- Detailed Description: 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Mono Connector Solder
- Category: Connectors, Interconnects | Barrel Connectors - Audio Connectors
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.2120
10+
$1.1393
100+
$1.0787
1000+
$1.0181
10000+
$0.9575
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | CUI Devices |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 1000 |
| Product Status | Active |
| Connector Type | Phone Jack |
| Gender | Female |
| Signal Lines | Mono |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Actual Diameter | 0.142" (3.60mm) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Shielding | Unshielded |
| Features | Board Guide |
| Insulation Color | - |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Rated | 12VDC |
| Current Rating (Amps) | 1 A |
| Mating Length/Depth | - |
| Contact Material - Plating | Silver |
| Body Material | - |
| Body Color | Black |
| Includes | - |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Contact Material | Brass; Copper Alloy |
| Cable Opening | - |
| Panel Hole Size | - |
| Thread Size | - |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
