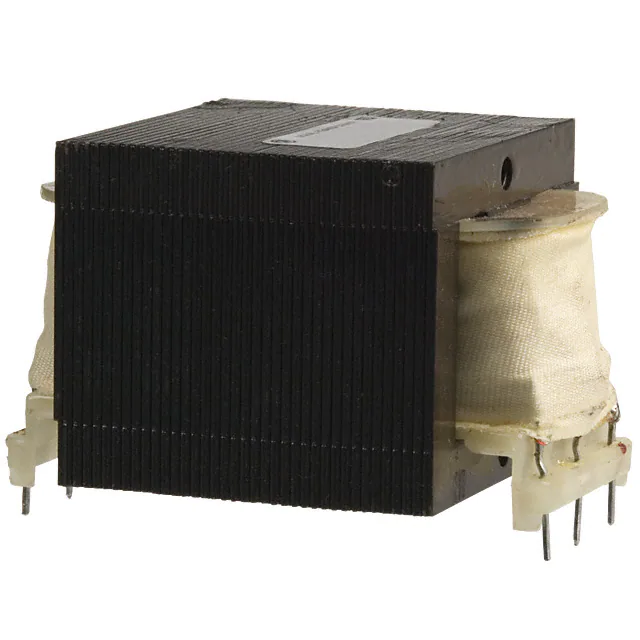

PC-28-800
PC-28-800
- Available: 0
- Manufacturer: Signal Transformer
- Part Number: PC-28-800
- Detailed Description: PWR XFMR LAMINATED 24VA TH
- Category: Transformers | Power Transformers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$16.3008
10+
$15.3228
100+
$14.5077
1000+
$13.6927
10000+
$12.8776
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Signal Transformer |
|---|---|
| Series | PC |
| Package | Box |
| Standard Package | 50 |
| Product Status | Active |
| Type | Laminated Core |
| Voltage - Primary | 115V |
| Voltage - Secondary (Full Load) | Parallel 14V, Series 28V |
| Current - Output (Max) | Parallel 1.6A, Series 800mA |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Dual |
| Center Tap | No |
| Power - Max | 24VA |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Size / Dimension | 41.30mm L x 57.20mm W |
| Height - Seated (Max) | 34.93mm |
| Voltage - Isolation | 1500Vrms |
| Weight | 0.75 lb (340.19 g) |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4035 |
