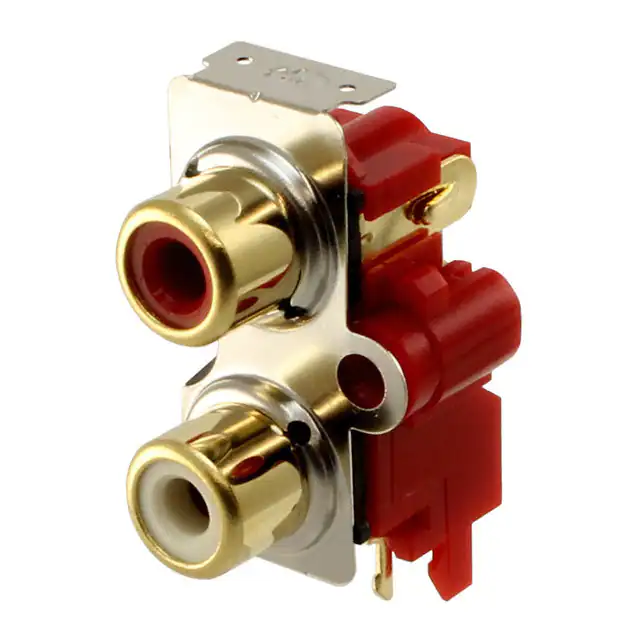

PJRAS1X2S01AUX
PJRAS1X2S01AUX
- Available: 4101
- Manufacturer: Switchcraft Inc.
- Part Number: PJRAS1X2S01AUX
- Detailed Description: 3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder
- Category: Connectors, Interconnects | Barrel Connectors - Audio Connectors
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Switchcraft Inc. |
|---|---|
| Series | PJR |
| Package | Bulk |
| Standard Package | 1000 |
| Product Status | Active |
| Connector Type | Phono (RCA) Jack |
| Gender | Female |
| Signal Lines | Mono |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) |
| Actual Diameter | - |
| Number of Positions/Contacts | 2 Sets of 2 Conductors, 3 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Shielding | Shielded |
| Features | Grounding Tab |
| Insulation Color | Red, White |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Rated | 34VAC/DC |
| Current Rating (Amps) | 2 A |
| Mating Length/Depth | - |
| Contact Material - Plating | Gold |
| Body Material | Copper Alloy |
| Body Color | Gold, Black |
| Includes | - |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Contact Material | Copper Alloy |
| Cable Opening | - |
| Panel Hole Size | - |
| Thread Size | - |
| Base Product Number | PJRAS1 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
