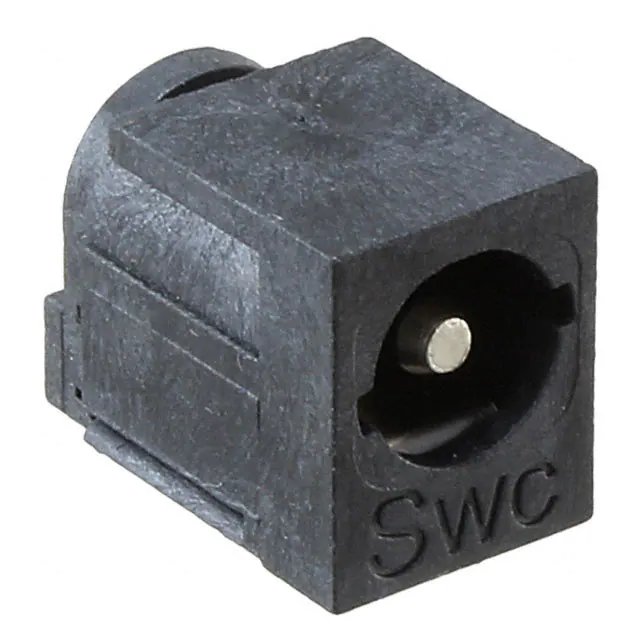

RAPC712BK
RAPC712BK
- Available: 0
- Manufacturer: Switchcraft Inc.
- Part Number: RAPC712BK
- Detailed Description: Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle
- Category: Connectors, Interconnects | Barrel Connectors - Power Connectors
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.5680
10+
$2.4139
100+
$2.2855
1000+
$2.1571
10000+
$2.0287
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Switchcraft Inc. |
|---|---|
| Series | - |
| Package | Bulk |
| Standard Package | 2500 |
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Actual Diameter | 0.098" (2.50mm) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - |
| Termination | Solder Eyelet(s) |
| Shielding | Unshielded |
| Features | - |
| Insulation Color | - |
| Voltage - Rated | - |
| Current Rating (Amps) | 5 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Operating Temperature | - |
| Contact Material - Plating | Tin |
| Body Material | - |
| Includes | - |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Thread Size | - |
| Body Color | Black |
| Base Product Number | RAPC71 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
