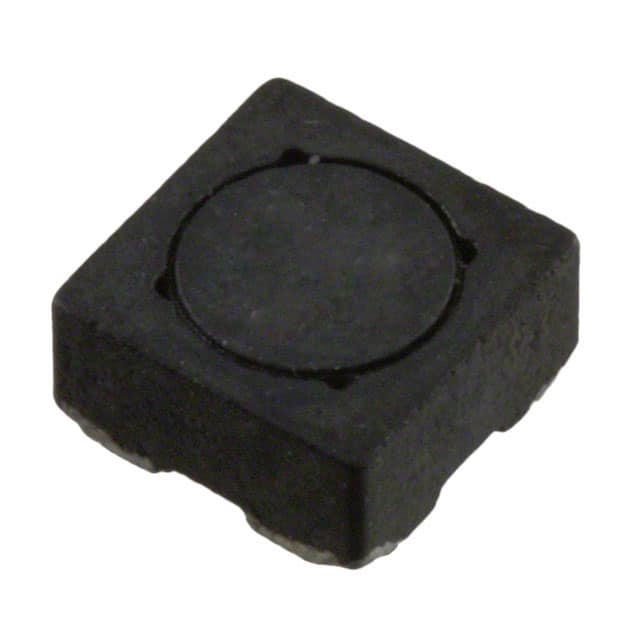

SDQ25-330-R
SDQ25-330-R
- Available: 2900
- Manufacturer: Eaton - Electronics Division
- Part Number: SDQ25-330-R
- Detailed Description: Shielded 2 Coil Inductor Array 135.2 µH Inductance - Connected in Series 33.8 µH Inductance - Connected in Parallel 379.5mOhm DC Resistance (DCR) - Parallel 812 mA Nonstandard
- Category: Inductors, Coils, Chokes | Arrays, Signal Transformers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.9960
10+
$3.7562
100+
$3.5564
1000+
$3.3566
10000+
$3.1568
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Eaton - Electronics Division |
|---|---|
| Series | SDQ |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 2900 |
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 33.8 µH |
| Inductance - Connected In Series | 135.2 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 812 mA |
| Current Rating - Series | 406 mA |
| Current Saturation - Parallel | 692 mA |
| Current Saturation - Series | 346 mA |
| DC Resistance (DCR) - Parallel | 379.5mOhm |
| DC Resistance (DCR) - Series | 1.52Ohm |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height | 0.098" (2.50mm) |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8504.50.4000 |
