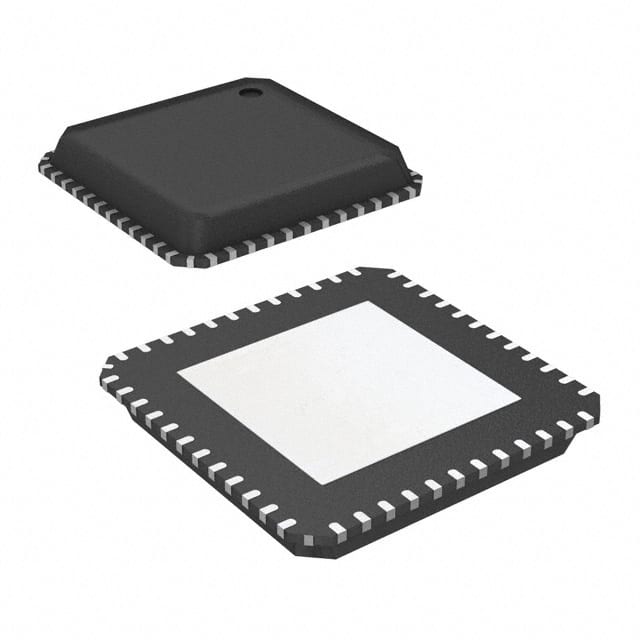

TLE7183FXUMB1
TLE7183FXUMB1
- Available: 0
- Manufacturer: Infineon Technologies
- Part Number: TLE7183FXUMB1
- Detailed Description: Motor Driver Power MOSFET Parallel PG-VQFN-48-14
- Category: Integrated Circuits (ICs) | PMIC - Motor Drivers, Controllers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$5.6370
10+
$5.2988
100+
$5.0169
1000+
$4.7351
10000+
$4.4532
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Infineon Technologies |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) |
| Standard Package | 2000 |
| Product Status | Not For New Designs |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Function | Controller - Commutation, Direction Management |
| Output Configuration | Pre-Driver - Half Bridge (3) |
| Interface | Parallel |
| Technology | Power MOSFET |
| Step Resolution | - |
| Applications | Automotive |
| Current - Output | - |
| Voltage - Supply | 5.5V ~ 20V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 48-VQFN Exposed Pad |
| Supplier Device Package | PG-VQFN-48-14 |
| Base Product Number | TLE7183 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
