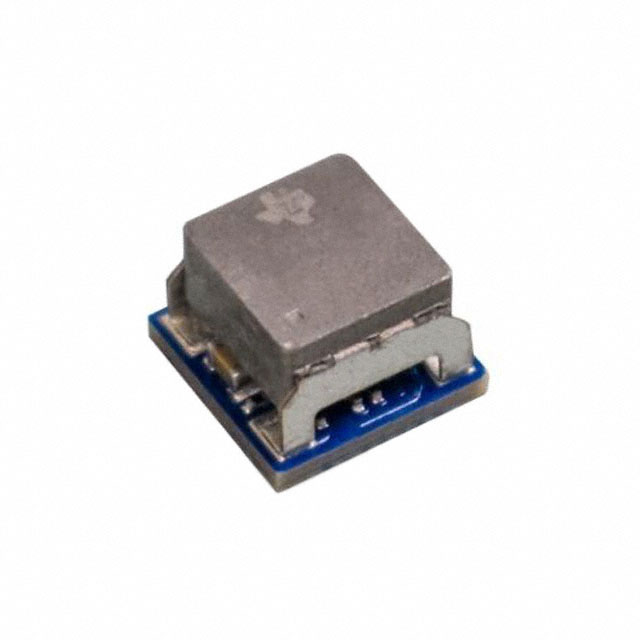

TPSM84424MOLR

TPSM84424MOLR

TPSM84424MOLR

  • Available: 1500
  • Manufacturer: Texas Instruments
  • Part Number: TPSM84424MOLR
  • Detailed Description: Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 10V - - - 4A 4.5V - 17V Input
  • Category: Power Supplies - Board Mount | DC DC Converters Board Mount
  • RoHS Status: ROHS3 Compliant
  • Datasheet: Datasheet
Reference Price (USD)
1+
$11.5080
10+
$10.8175
100+
$10.2421
1000+
$9.6667
10000+
$9.0913

Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.

Product Specifications

Manufacturer Texas Instruments
Series TPSM
Package Tape & Reel (TR) | Cut Tape (CT)
Standard Package 500
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 17V
Voltage - Output 1 0.6 ~ 10V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 4A
Applications ITE (Commercial)
Features OCP, OTP, UVLO
Operating Temperature -40°C ~ 105°C
Efficiency 94%
Mounting Type Surface Mount
Package / Case 24-SMD Module
Size / Dimension 0.30 L x 0.30 W x 0.21 H (7.5mm x 7.5mm x 5.4mm)
Supplier Device Package 24-QFM (7.5x7.5)
Base Product Number TPSM84424

Environmental & Export

RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
