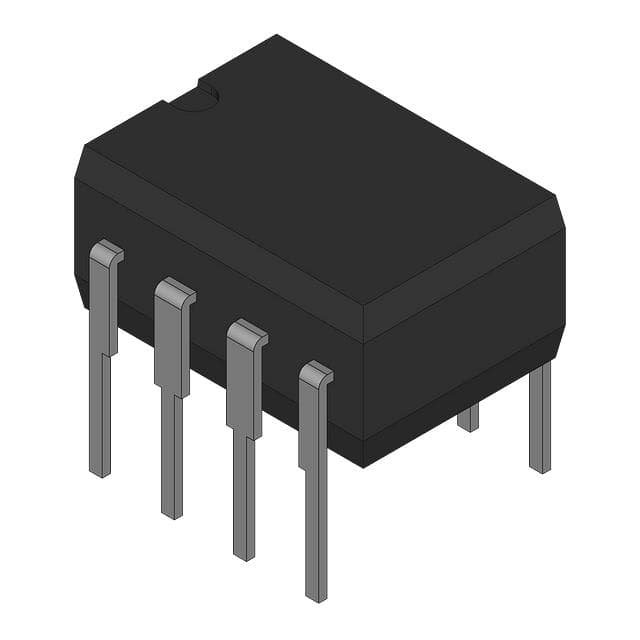

UC1842J883B
UC1842J883B
- Available: 0
- Manufacturer: Unitrode
- Part Number: UC1842J883B
- Detailed Description: Boost, Flyback, Forward Regulator Positive, Isolation Capable Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 8-CDIP
- Category: Integrated Circuits (ICs) | PMIC - DC DC Switching Controllers
- RoHS Status： RoHS non-compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$28.3680
10+
$26.6659
100+
$25.2475
1000+
$23.8291
10000+
$22.4107
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Unitrode |
|---|---|
| Series | - |
| Package | - |
| Standard Package | 1 |
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up | Step-Up/Step-Down |
| Output Configuration | Positive | Isolation Capable |
| Topology | Boost | Flyback | Forward |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 12V ~ 28V |
| Frequency - Switching | Up to 500kHz |
| Duty Cycle (Max) | 96% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 8-CDIP (0.300" | 7.62mm) |
| Supplier Device Package | 8-CDIP |
Environmental & Export
| RoHS Status | RoHS non-compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | Vendor Undefined |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
